Removal

LAMP




1. Disconnect and isolate the battery negative cable.

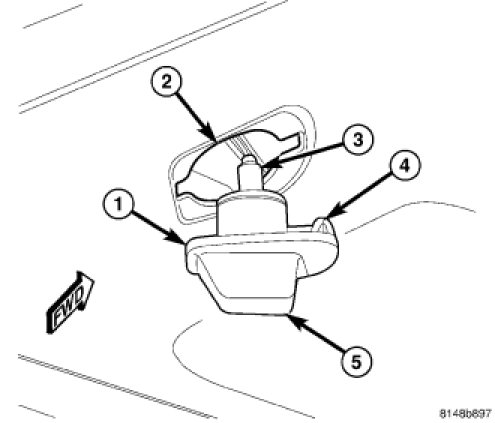

2. Using hand pressure, press the rear edge of the license plate lamp lens/housing (5) toward the front of the vehicle against the spring pressure of the retaining clip (4), then pull the rear edge of the lamp outward to disengage it from the mounting hole (2) in the rear bumper.

3. Pull the lamp out from the rear bumper far enough to access the bulb socket (3) on the back of the lamp lens/housing.

4. Firmly grasp the socket on the back of the housing and rotate it counterclockwise about 30 degrees to unlock it.

5. Pull the socket and bulb straight out from the keyed opening in the lamp housing.

6. Remove the lamp from the rear bumper.
