Installation

INSTALLATION

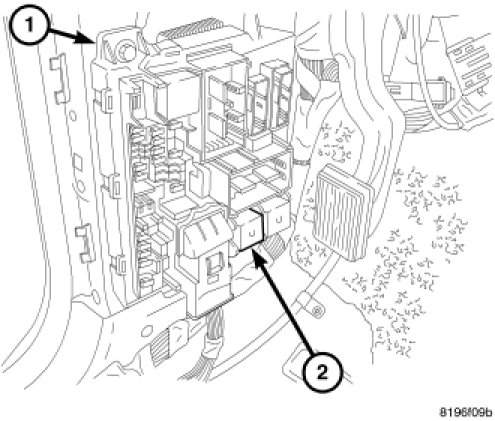

1. Position the rear blower motor relay (2) into the proper receptacle of the junction block (JB) (1).

2. Align the rear blower motor relay terminals with the terminal cavities in the JB receptacle and push down firmly on the relay until the terminals are fully seated.

3. Reinstall the cowl side trim panel.

4. Reconnect the negative battery cable.
