Removal

REMOVAL




1. Position the front seat to the full forward position.

2. Release and fold seat forward.

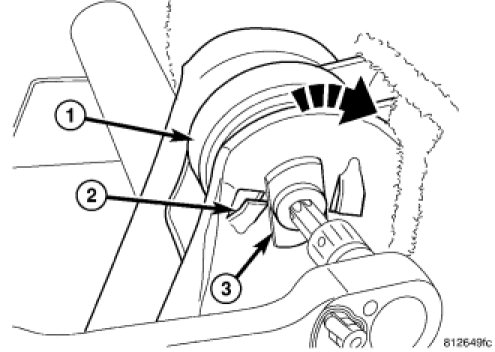

3. Turn the hinge pin (3) clockwise and disengage from the retaining tabs (2).

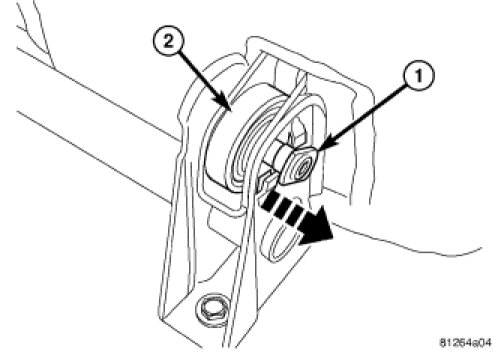

4. With pin (1) released from the retaining tabs, tap pin out of the spring (2) and remove.

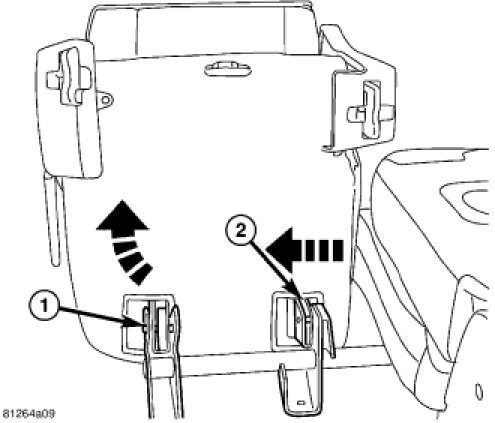

5. Twist the seat assembly up and out of the outboard hinge (1) and disengage from the inner hinge (2) and remove seat.
