Installation

INSTALLATION





NOTE: 5.7L engine shown. 3.7L/4.7L engines similar.

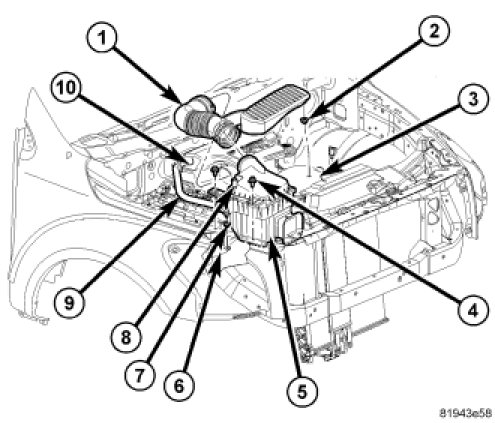

1. Position the air cleaner housing (5) into the engine compartment. Rotate and tilt the housing as necessary.
2. Engage the air cleaner housing to the grommet (7) located on the battery tray (6).
3. Install the two bolts (4) that secure the air cleaner housing to right inner fender. Tighten the bolts securely.
4. Connect the air inlet hose (1) to the resonator (10) and to the air cleaner housing cover (8).
5. Engage air inlet hose to the grommet (2) located on the top of the radiator fan shroud (3).
6. Tighten the clamps that secure the air inlet hose to the resonator and the air cleaner housing cover.
7. Connect the PCV fresh air hose (9) to the air cleaner housing cover.
