Removal

REMOVAL




1. Remove the watershield. Refer to Rear Door Panel.

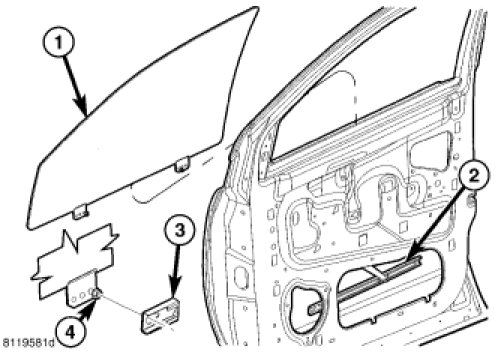

2. Temporarily install the window switch and position the glass (1) to gain access to the regulator nuts (4).

3. Remove the nuts (4).

4. Secure the glass in the up position using a wood wedge or equivalent.

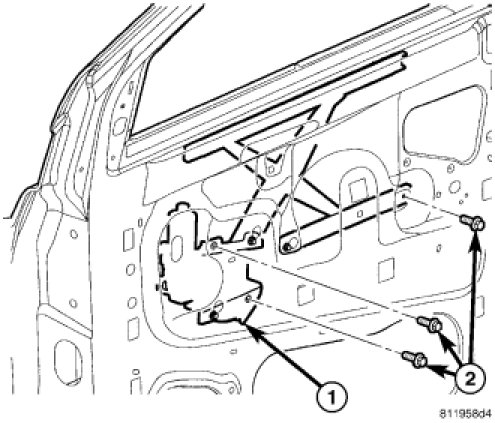

5. Remove the bolts (2) and loosen the remaining regulator bolts.

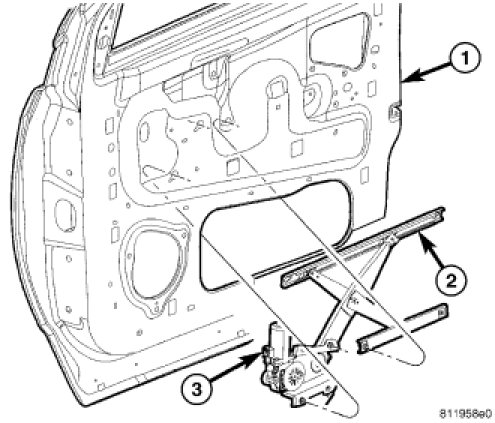

6. Separate the regulator (2) from the door panel (1) and disconnect the electrical connector (3).
