Park Lamp Output 2 Open

Test 1-3:

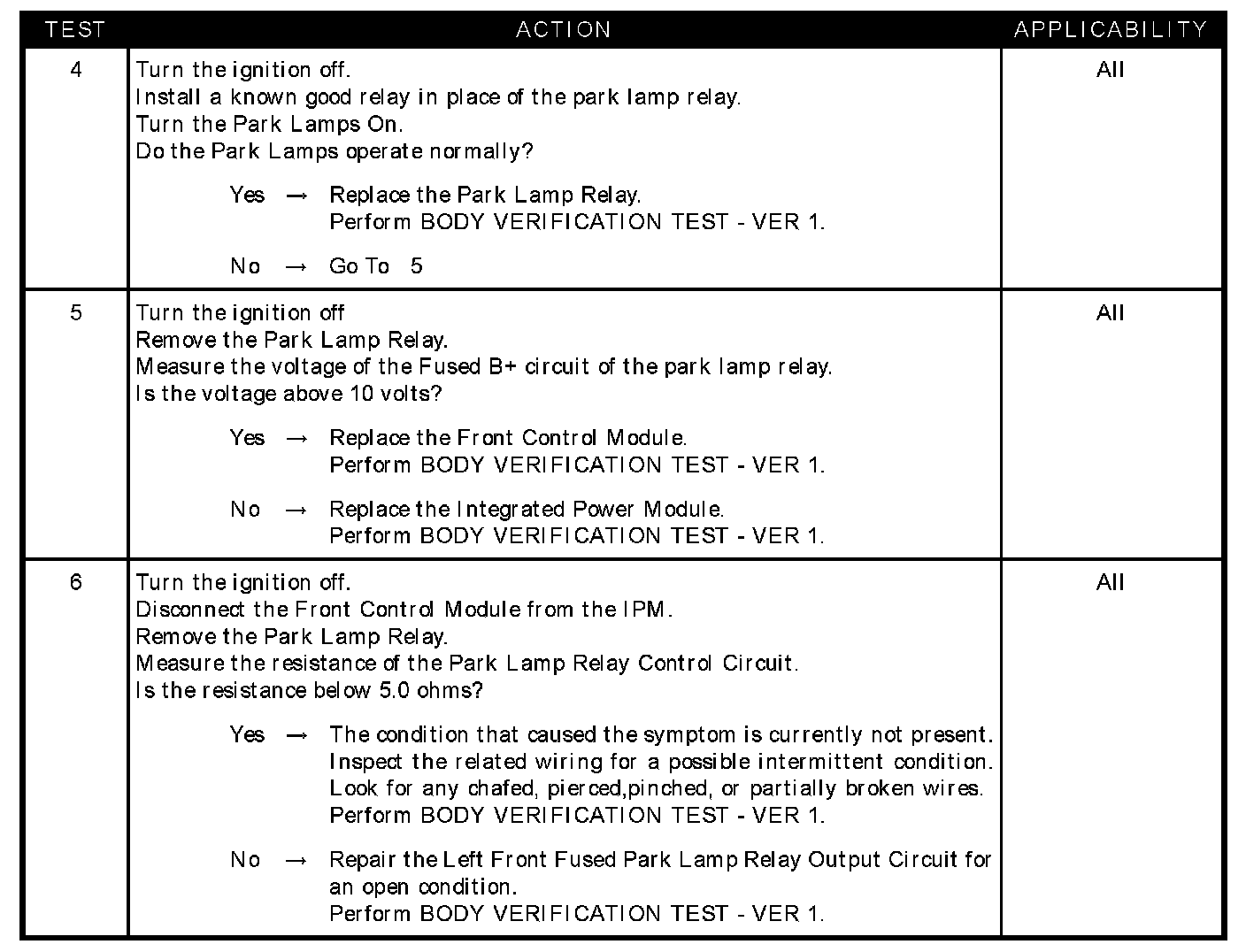

Test 4-6:

SYMPTOM
PARK LAMP OUTPUT 2 OPEN

WHEN MONITORED
Ignition on.

SET CONDITION
The IPM detects high current from the Park Lamp Relay Control circuit.

POSSIBLE CAUSES
- Missing relay
- Open fuse
- Park lamp relay
- Intermittent condition
- Left front fused park lamp relay output circuit open
- Front control module
- Integrated power module
