Passenger Airbag Off Indicator Circuit Short to Battery

Test 1:

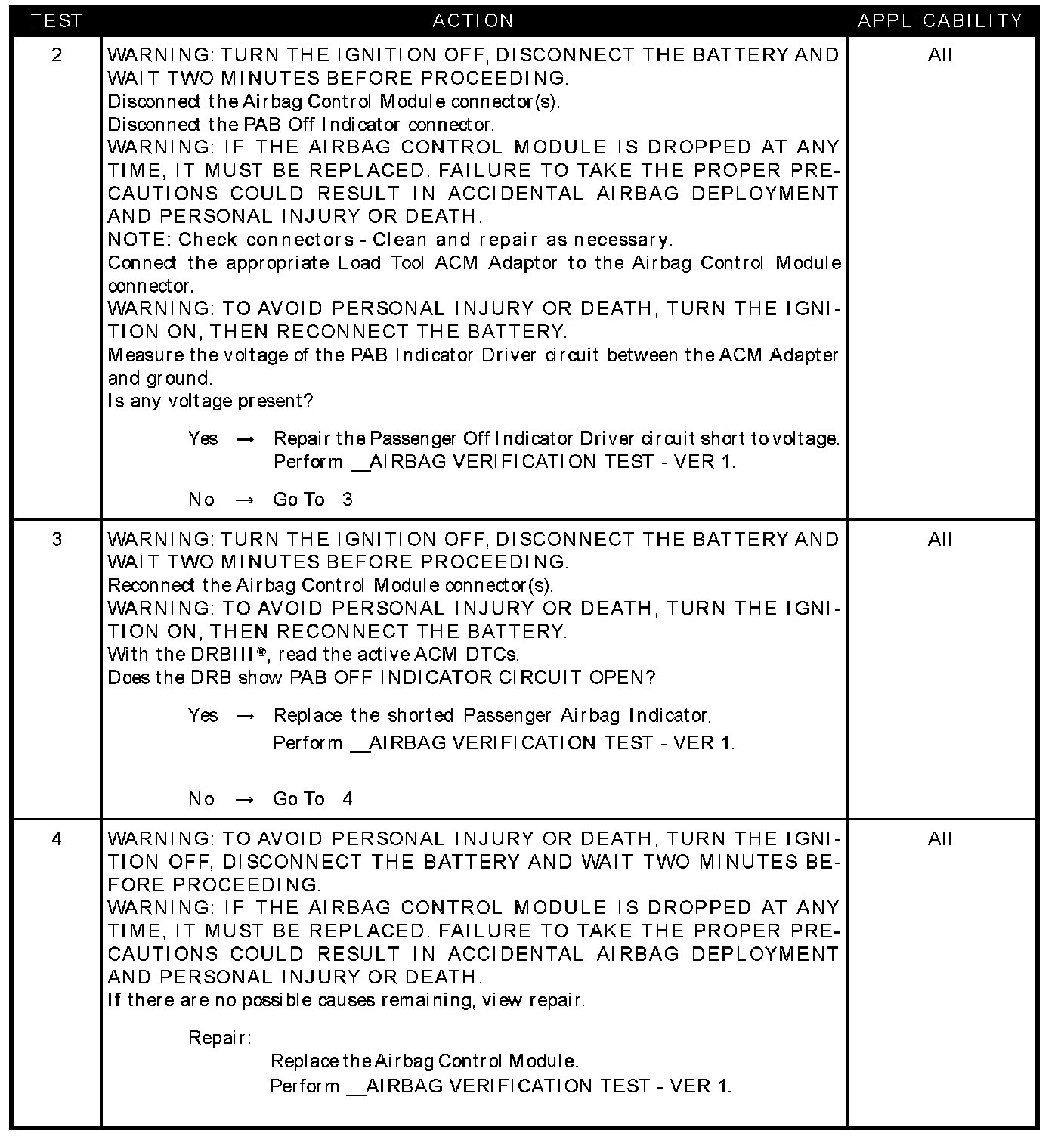

Test 2-4:

Test 5:

SYMPTOM
PASSENGER AIRBAG OFF INDICATOR CIRCUIT SHORT TO BATTERY

WHEN MONITORED
When the ignition is on, the ACM monitors the PAB Indicator Driver circuit voltage from the PAB Off indicator circuit.

SET CONDITION
The code will set if the ACM senses a low resistance to battery voltage from PAB Indicator Driver circuit.

POSSIBLE CAUSES
- Shorted PAB off indicator
- PAB off indicator circuit short to battery
- ACM, passenger indicator drive circuit shorted to battery
- Stored code or intermittent condition
- Active code present
