Installation

INSTALLATION - 3.7L

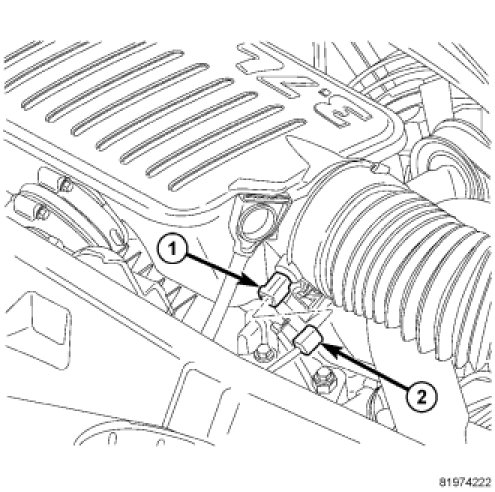

The intake manifold air temperature (IAT) sensor (1) is installed into the rubber air intake tube near the throttle body.

1. Clean mounting hole.

2. Check condition of sensor O-ring.

3. Push IAT sensor (1) into rubber intake tube while rotating for installation.

4. Connect electrical connector (2) to IAT sensor.
