Sensor-Knock No. 1

Component ID: 379

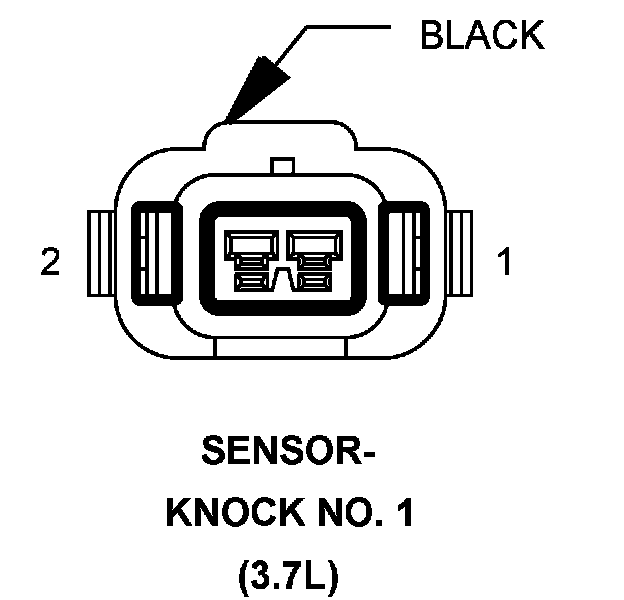

Component : SENSOR-KNOCK NO. 1

Connector:
Name : SENSOR-KNOCK NO. 1
Color : BLACK
# of pins : 2
Qualifier : (3.7L)

Pin Description Circuit
1 KS SIGNAL 1 K42 18DB/YL
2 KS RETURN 1 K942 18BR/LG

Component Location - 19

Component Location - 21
