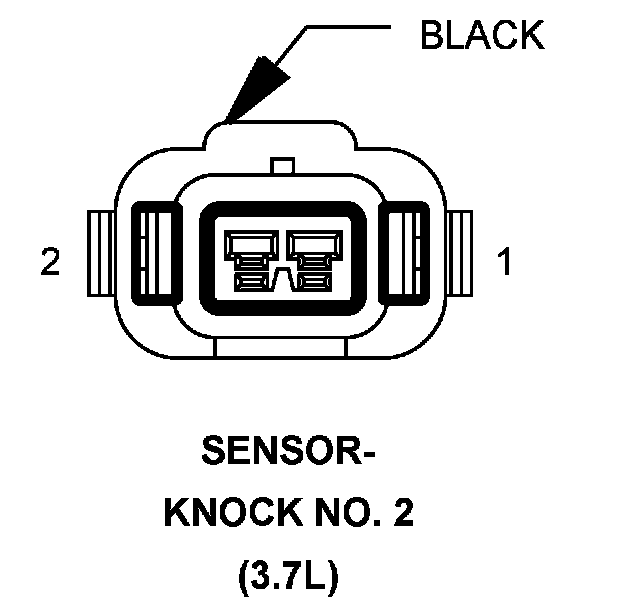

Sensor-Knock No. 2

Component ID: 380
Component : SENSOR-KNOCK NO. 2

Connector:
Name : SENSOR-KNOCK NO. 2
Color : BLACK
# of pins : 2
Qualifier : (3.7L)




Pin Description Circuit
1 KS SIGNAL 2 K242 18BR/WT
2 KS RETURN 2 K924 18WT/BR

Component Location - 19
