Removal

REMOVAL




1. Disconnect and isolate the battery negative cable.

2. Remove the glove box.

3. Remove the instrument panel center bezel.

4. Remove the radio.

CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

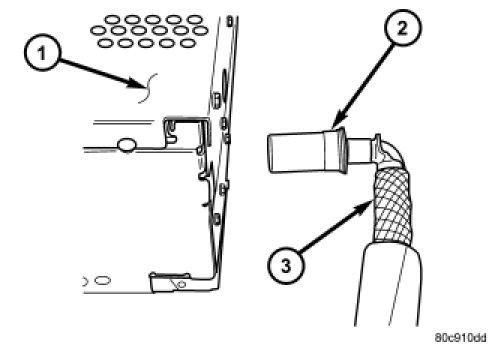

5. Disconnect the antenna cable by pulling the locking antenna connector away from the radio.

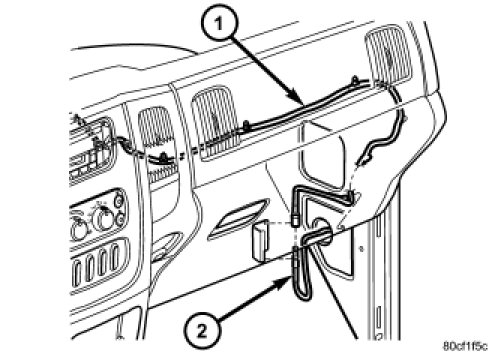

6. Remove antenna cable from instrument panel by pulling on retaining fasteners.
