Removal

REMOVAL

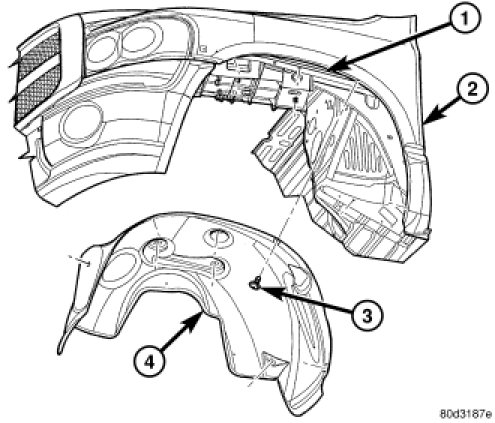

1. Open the hood and disengage any wiring or component retaining clips from the front splash shield (4) (depending on application and shield being serviced).

2. Raise and support the vehicle.

3. Remove the eight screws (3) that secure the front splash shield to the fender rail (1) and the front fender (2).

4. Disconnect the front splash shield from the support bracket located on the front bumper and remove the splash shield.
