Removal

REMOVAL

Mini Floor Console





1. If equipped, remove the 4WD gear shift boot.

2. If equipped with a manual transmission, remove the transmission gear shift lever extension.

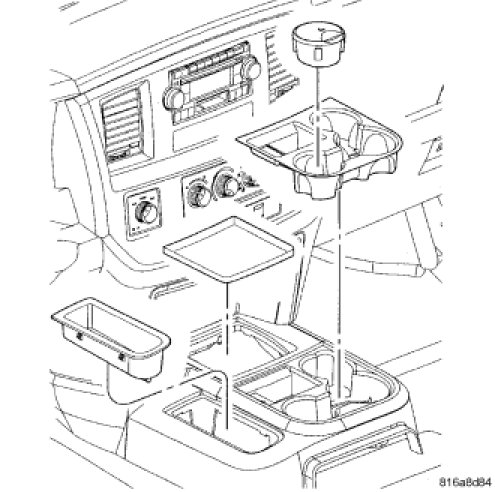

3. Remove the console inserts, if equipped.

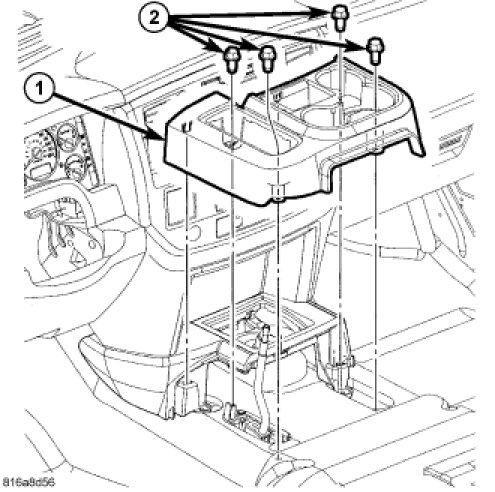

4. Remove the bolts (2) that secure the rear console (1) to the floor panel.

5. Lift up the rear of the floor console to clear the gear shift lever, if equipped.





6. Remove the bolts (2) and separate the front console (3) from the floor.

7. Separate the front clips (1) and remove the mini console.


Full Floor Console





1. Before proceeding with the following repair procedure, review all warnings and cautions.

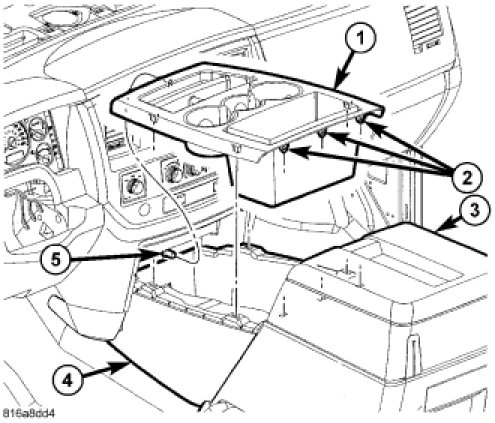

2. Using a trim stick C-4755 or equivalent, separate the seven front console bezel clips (2), lift up the back of the bezel (1) and remove.

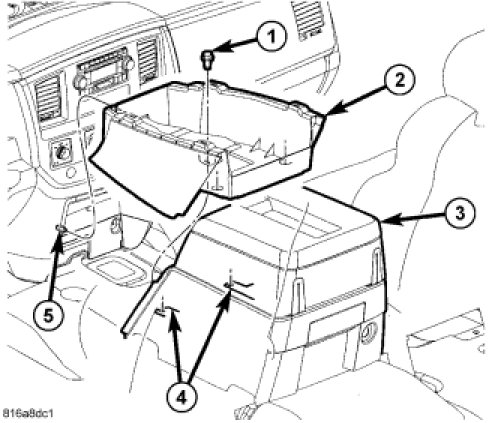

3. Remove the bolts (1) and lift the rear of the base up to release the front guide pins (5).

4. Remove the front base (2).






NOTE: Do not reuse the seat fasteners, always replace with new ones.

5. Remove and discard the front bolts (4).

6. Position the seats forward, remove the rear bolts (2) and discard.

7. Disconnect the 12v power supply electrical connector (3 - if equipped).





8. Fold the seat backs forward and roll the seat assembly (1) back in the vehicle.

9. Remove the nuts (2) attaching the center seat console (1) to the drivers seat and the passenger seat and discard.





10. Remove the nuts (4) attaching the center console (2) to the drivers seat (3) and the passenger seat in the rear of the seat and discard.

11. Disconnect the electrical connector (1 - if equipped).

12. Roll the seat assembly forward and remove the center seat console.
