Installation

INSTALLATION

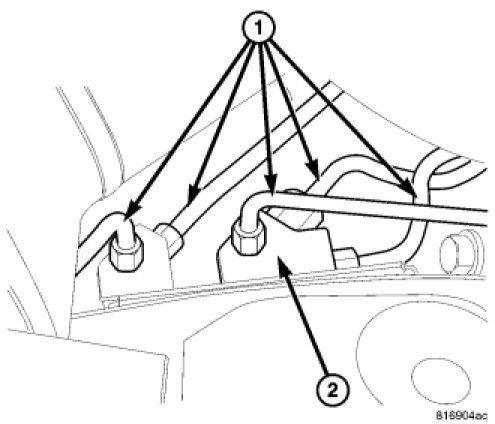

1. Position the junction block (2) on the bracket and install the mounting bolt. Tighten the mounting bolt to 23 Nm (210 in. lbs.).
2. Install the brake lines (1) into the junction block (2) and tighten to 19-23 Nm (170-200 in. lbs.).
3. Bleed the base brake system.
