Instrument Panel Center Bezel - Installation

INSTALLATION

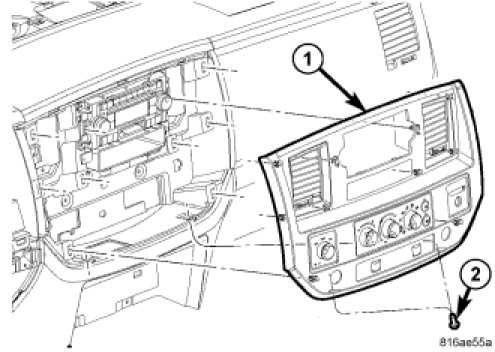

1. Position the instrument panel center bezel (1) near the instrument panel and connect the wire harness connectors (4).





2. Install the instrument panel center bezel (1) onto the instrument panel and fully engage the retainer clips.

3. Install the two lower screws (2).

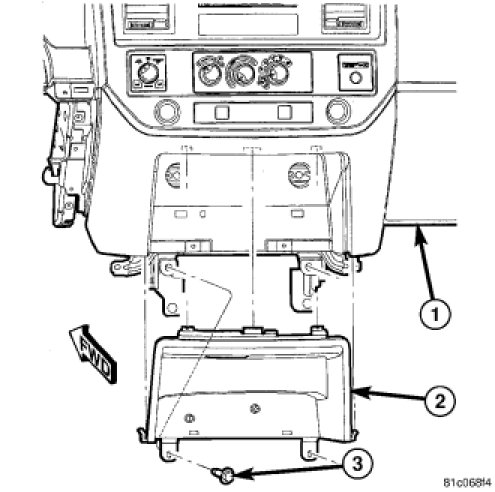

4. If necessary, install the close out panel (2) and install the screws (3).

5. Install the cup holder if equipped.

6. Install the floor console if necessary.

7. Connect the negative battery cable.
