Assembly

ASSEMBLY

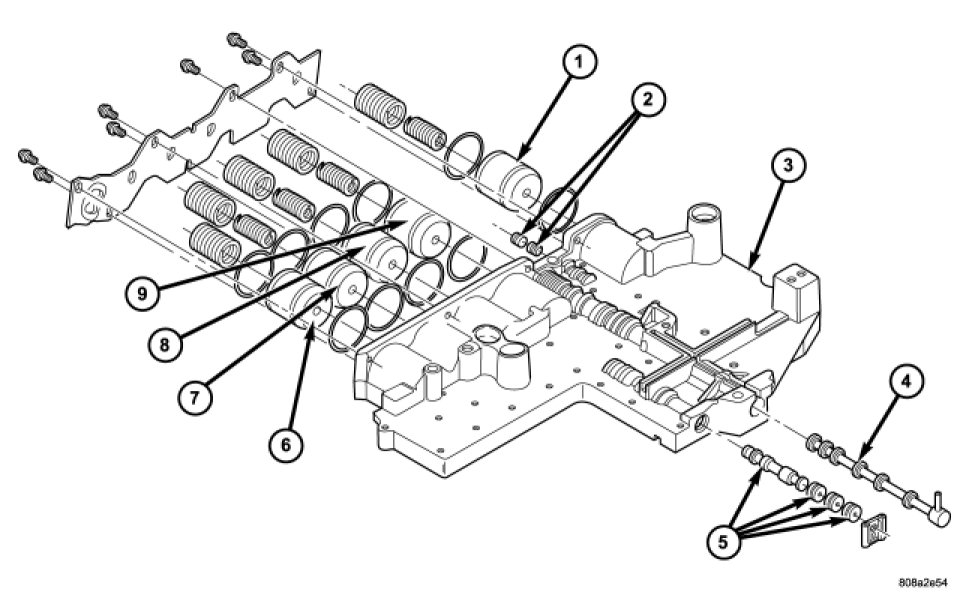

Valve Body Components






1. Lubricate valves and the housing valve bores with clean transmission fluid.
2. Install solenoid switch valve and plugs (5) and manual valve (4) into the valve body.
3. Install the retainers to hold each valve into the valve body.

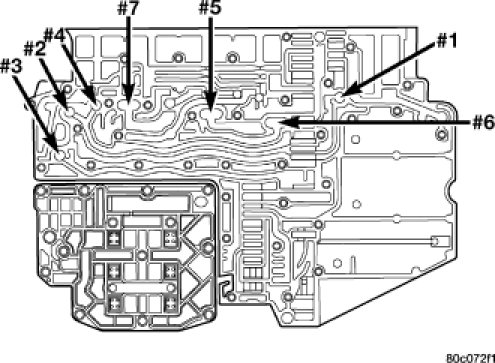

4. Install the valve body check balls into their proper locations.
5. Position the separator and transfer plate onto the valve body.
6. Install the screws to hold the transfer plate to the valve body. Tighten the screws to 6 Nm (50 in. lbs.).�

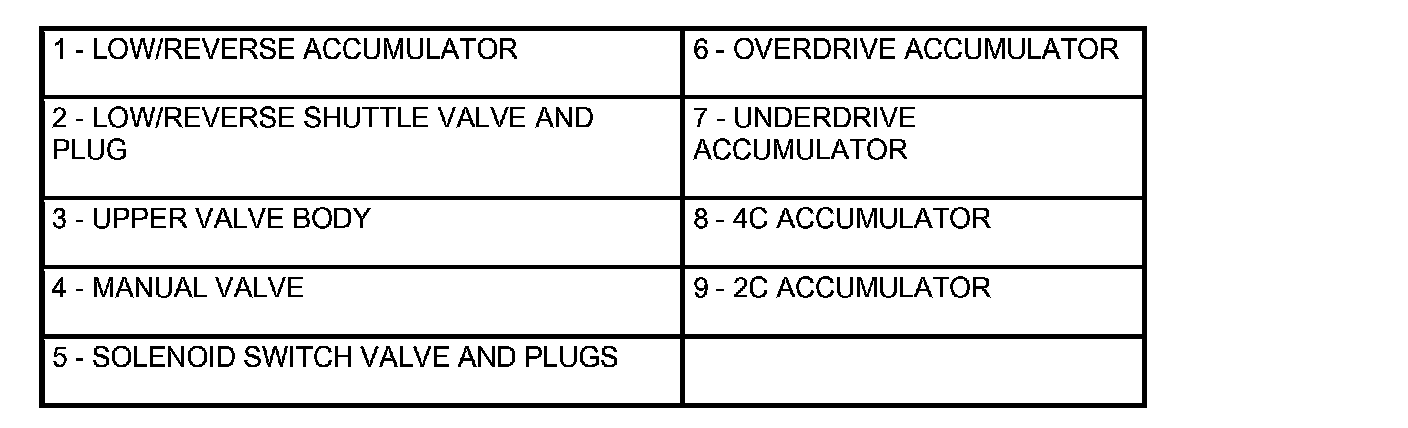

Valve Body Components






7. Install the accumulator pistons (1, 6-9) and springs into the valve body in the location from which they were removed. Note that all accumulators except the overdrive have two springs. The overdrive accumulator piston (6) has only one spring.
8. Install the Low / Reverse shuttle valve, plug and retainer (2) into the valve body housing.
9. Position the accumulator cover onto the valve body.
10. Install the screws to hold the accumulator cover onto the valve body. Tighten the screws to 7 Nm (60 in. lbs.).

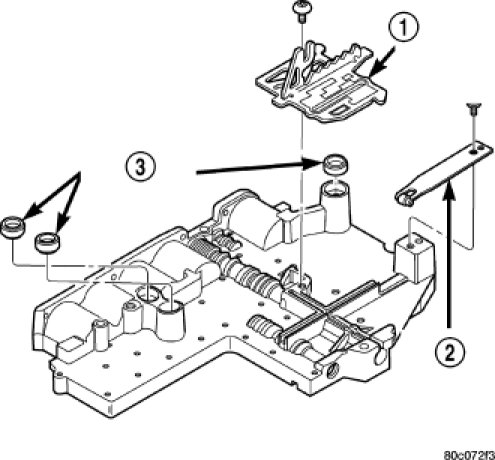

11. Install the TRS selector plate (1) onto the valve body and the manual valve.
12. Position the detent spring (2) onto the valve body.
13. Install the screw to hold the detent spring (2) onto the valve body. Tighten the screw to 4.5 Nm (40 in. lbs.).
14. Install new clutch passage seals (3) onto the valve body, if necessary.




15. Install the solenoid and pressure switch assembly onto the valve body.

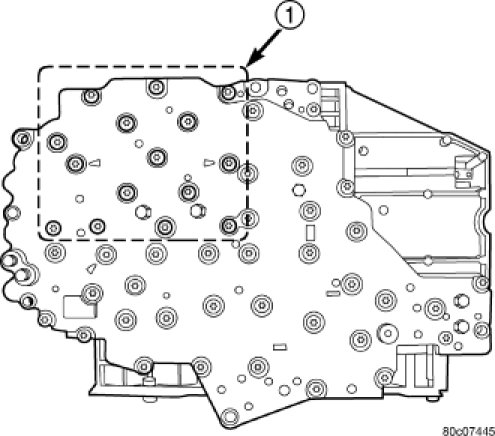

16. Install the bolts (1) to hold the solenoid and pressure switch assembly onto the valve body. Tighten the bolts to 6 Nm (50 in. lbs.). Tighten the bolts adjacent to the arrows cast into the bottom of the transfer plate first.
