Rear Dual Wheels

REAR DUAL WHEELS

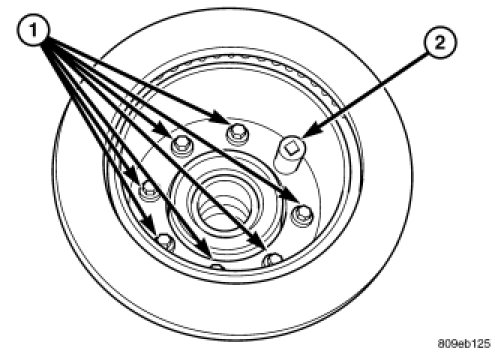

1. Install the hub to the rotor. Tighten the bolts (1) to 128 Nm (95 ft. lbs.).




2. Install the hub and rotor assembly.

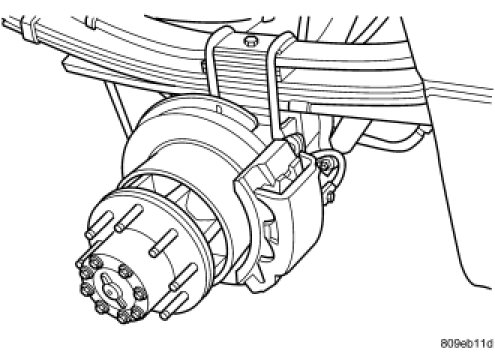

3. Install the rear axle shaft to the housing with dual wheels.
4. Install the caliper adapter bolts 197 Nm (145 ft.lbs) LD.
5. Install the disc brake caliper.
6. Install the tire and wheel assembly.
7. Lower the vehicle.
