Removal

REMOVAL

NOTE: It is not necessary to discharge the refrigerant system to replace the A/C pressure transducer.

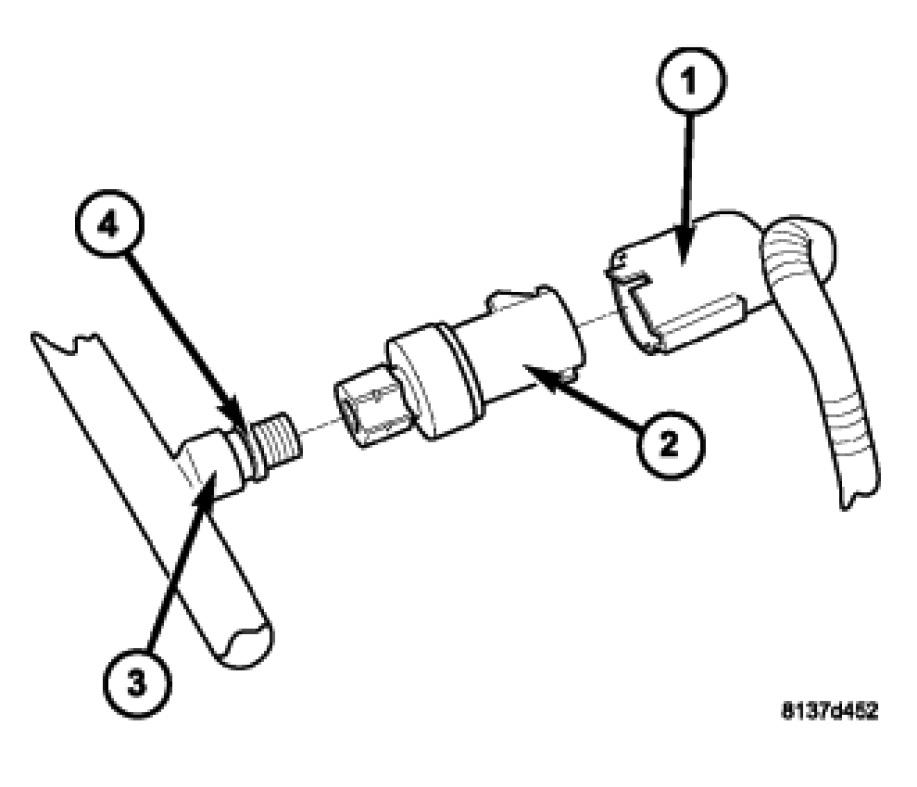

NOTE: Typical A/C pressure transducer and refrigerant line shown.

1. Disconnect and isolate the negative battery cable.

2. Disconnect the wire harness connector (1) from the A/C pressure transducer (2) located on the A/C discharge line (3).

3. Remove the A/C pressure transducer from the fitting on the A/C discharge line and remove and discard the O-ring seal.
