Bulb - EVIC Control

BULB - EVIC CONTROL

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

NOTE: There are provisions for up to four bulb/bulb holder units on the Electronic Vehicle Information Center (EVIC) circuit board. The two outboard bulbs illuminate the EVIC push buttons, while the two center bulbs illuminate the optional universal transmitter push buttons. Therefore, the center bulb locations are only populated on vehicles equipped with the optional universal transmitter.







1. Disconnect and isolate the battery negative cable.

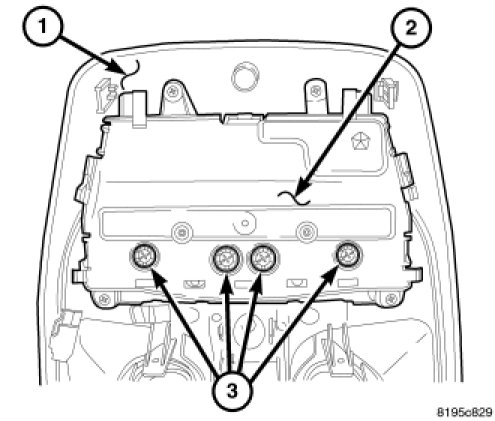

2. Remove the overhead console (1) from the headliner.

3. Use a small thin-bladed screwdriver to rotate the bulb holder (3) counterclockwise about 30 degrees to unlock it from the keyed opening in the Electronic Vehicle Information Center (EVIC) unit (2) circuit board.

4. Pull the bulb holder and bulb straight out of the circuit board.
