Installation

INSTALLATION




1. Check torque converter hub and hub drive flats for sharp edges burrs, scratches, or nicks. Polish the hub and flats with 800/1000 grit paper and crocus cloth if necessary. Verify that the converter hub O-ring is properly installed and is free of any debris. The hub must be smooth to avoid damaging pump seal at installation.

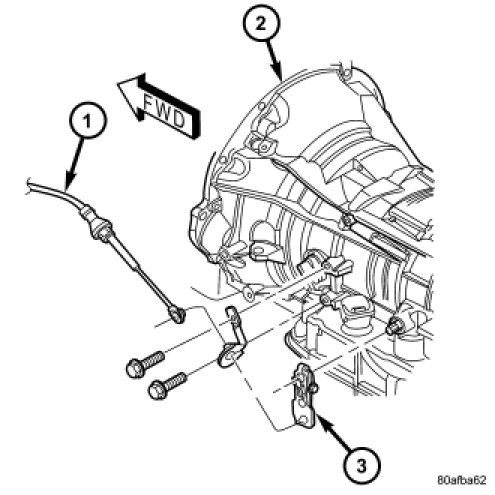

2. If a replacement transmission is being installed, transfer any components necessary, such as the manual shift lever and shift cable bracket, from the original transmission onto the replacement transmission.
3. Lubricate oil pump seal lip with transmission fluid.
4. Align converter and oil pump.
5. Carefully insert converter in oil pump. Then rotate converter back and forth until fully seated in pump gears.

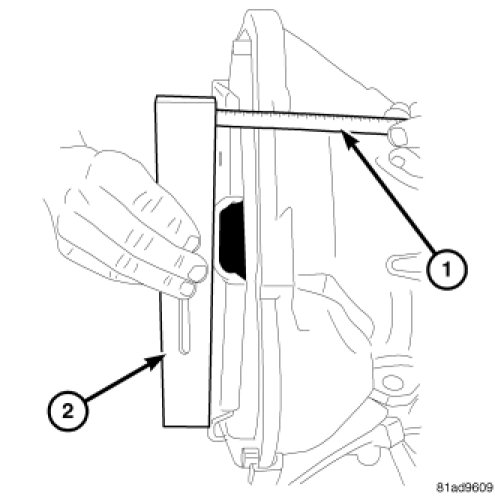

6. Check converter seating with steel scale and straightedge. Surface of converter lugs should be in front of the bell housing face about 25 mm, (1 in.).
7. Temporarily secure converter with C-clamp.




8. Position transmission on jack and secure it with chains.
9. Check condition of converter driveplate. Replace the plate if cracked, distorted or damaged. Also be sure transmission dowel pins are seated in engine block and protrude far enough to hold transmission in alignment.
10. Apply a light coating of Mopar(R) High Temp Grease to the torque converter hub pocket in the rear pocket of the engine's crankshaft.

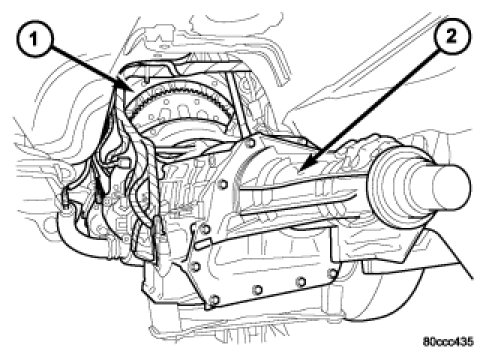

11. Raise transmission (2) and align the torque converter with the drive plate and transmission converter housing with the engine block.
12. Move transmission forward. Then raise, lower or tilt transmission to align the converter housing with engine block dowels while positioning filler tube into the filler tube bore.
13. Carefully work transmission forward and over engine block dowels until converter hub is seated in crankshaft. Verify that no wires, or the transmission vent hose, have become trapped between the engine block and the transmission.
14. Install two bolts to attach the transmission to the engine.
15. Install remaining torque converter housing to engine bolts. Tighten to 68 Nm (50 ft.lbs.).
16. Install transfer case, if equipped. Tighten transfer case nuts to 35 Nm (26 ft.lbs.).
17. Install rear support to transmission. Tighten bolts to 47 Nm (35 ft.lbs.).
18. Lower transmission onto crossmember and install bolts attaching transmission mount to crossmember. Tighten clevis bracket to crossmember bolts to 47 Nm (35 ft.lbs.). Tighten the clevis bracket to rear support bolt to 68 Nm (50 ft.lbs.).
19. Remove engine support fixture.
20. Install the transmission inspection cover. Tighten the bolts to 10 Nm (88 in.lbs.)
21. Install the power bending bracket.




DUST SHIELD

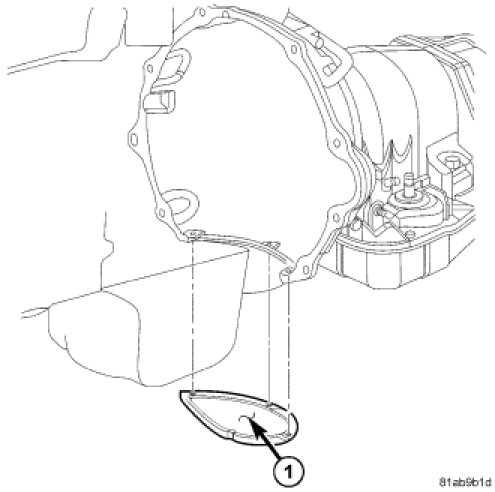

22. Install the transmission dust shield.




23. Connect gearshift cable to transmission.

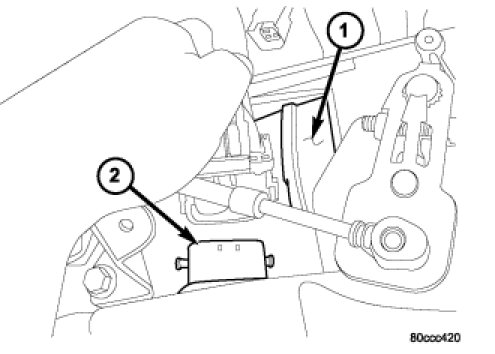

24. Connect wires to solenoid and pressure switch assembly (2) connector.

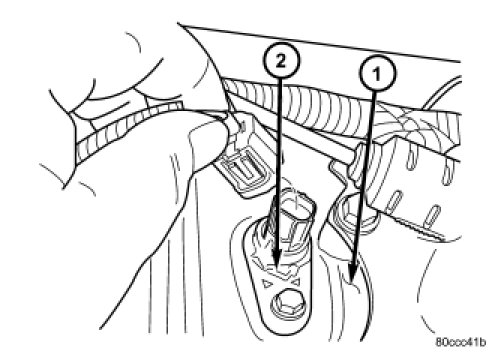

25. Connect wires to input speed sensor (2).

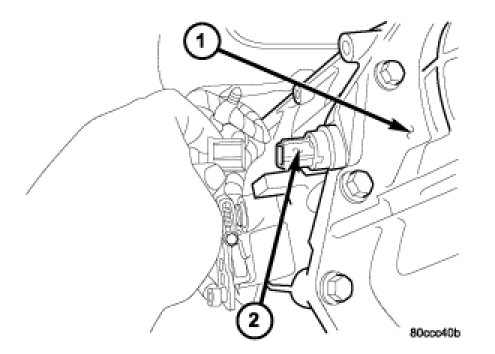

26. Connect wires to output speed sensor (2).




27. Connect wires to line pressure sensor (2). Be sure transmission harnesses are properly routed.

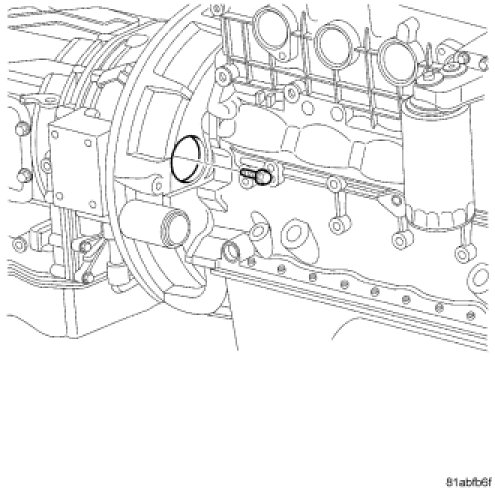

28. Install the differential pressure sensor bolt (if equipped). Tighten bolt to 10 Nm (88 in.lbs.).





CAUTION: It is essential that correct length bolts be used to attach the converter to the driveplate. Bolts that are too long will damage the clutch surface inside the converter.

29. Install torque converter-to-driveplate bolts. Tighten bolts to 31 Nm (270 in. lbs.).
30. Connect cooler lines to transmission.

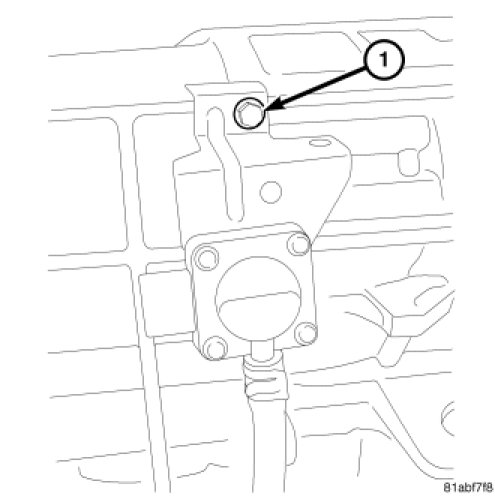

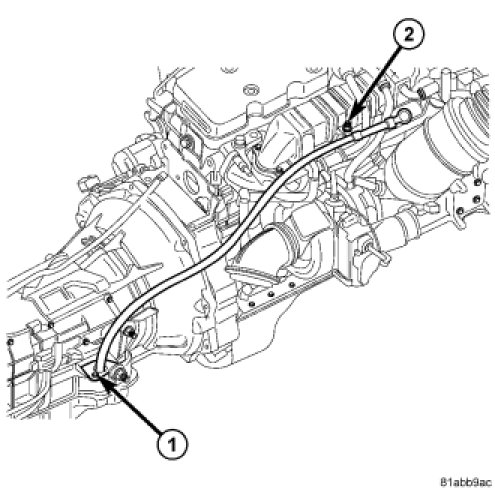

31. Install transmission fill tube bolt (1). Tighten bolt to 10 Nm (88 in. lbs.)
32. Install exhaust components, if necessary.
33. Align and connect propeller shaft(s).
34. Adjust gearshift cable if necessary.
35. Install any skid plates removed previously.
36. Lower vehicle.
37. Fill transmission with Mopar(R) ATF +4, Automatic Transmission Fluid.
