Disassembly

DISASSEMBLY




1. Remove ring gear.
2. Remove pinion shaft (2) with a hammer and punch from the side with the hole in the pinion shaft.

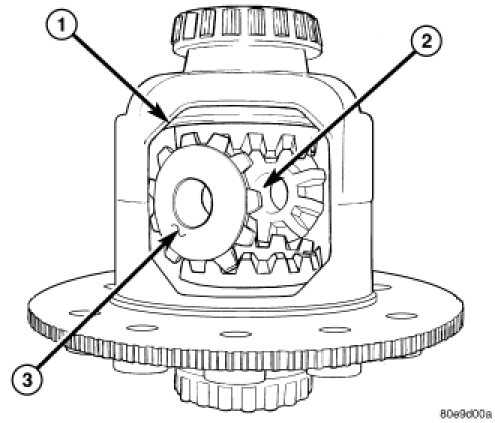

3. Rotate one pinion gear (2) with thrust washer (3) to the differential window (1) and remove the gear.




4. Rotate the other pinion gear (3) with thrust washer (2) to the differential window (1) and remove the gear.

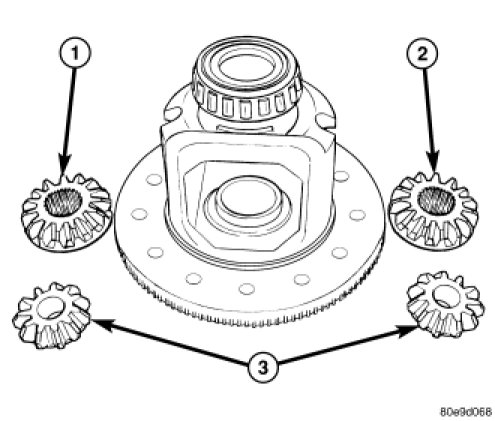

5. Remove differential side gears (1) (2) and thrust washers.
