Rear-Quad Cab

REAR-QUAD CAB

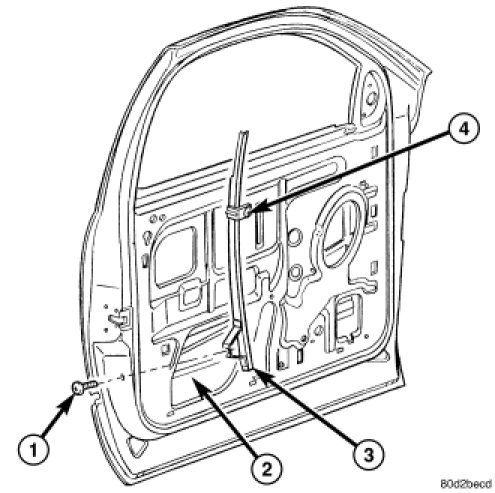

1. If removed, install the weatherstrip onto the rear glass run channel (3).

2. Position the rear glass run channel into the door through the door panel opening (2).

3. Engage the upper bolt (4) that secures the rear glass run channel to the door.

4. Install the lower bolt (1) that secures the rear glass run channel to the door. Tighten both the upper and lower bolts to 10 Nm (89 in. lbs.).

5. Install the window regulator and verify correct window operation.
