Rear






REAR




1. Raise the window glass to the full up position and remove the window regulator.

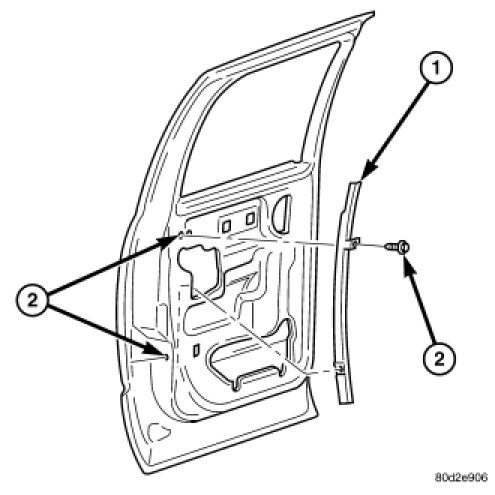

2. Remove the two bolts (2) that secure the rear glass run channel (1) to the door and remove the run channel through the door panel opening.

3. If required, remove the weatherstrip from the rear glass run channel.
