Installation

INSTALLATION

NOTE: To service the stabilizer bar the vehicle must be on a drive on hoist. The vehicle suspension must be at curb height for stabilizer bar installation.

1. If the bushings were removed, Clean the bar and install the bushings on the stabilizer bar using a mixture of soapy water or equivalent in order to slide the bushing over the bar with ease. Do not cut the new bushing for installation.





NOTE: Install new mounting bolts Do not reuse old bolts.

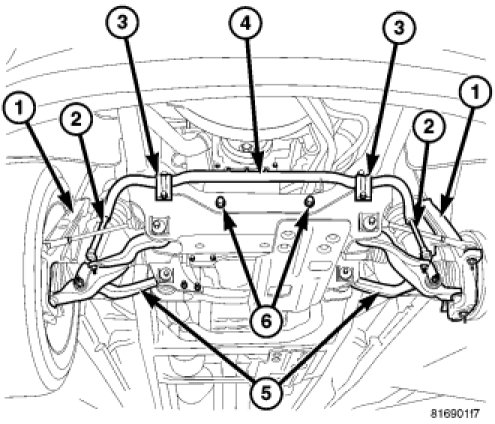

2. Position the stabilizer bar (4) on the frame crossmember brackets and install the bracket (3) bolts finger-tight.

NOTE: Check the alignment of the bar to ensure there is no interference with the either frame rail or chassis component. Spacing should be equal on both sides.




3. Install the stabilizer bar (3) to the stabilizer link (5) and install the grommets and retainers.
4. Install the nuts (4) to the stabilizer link (3) and tighten to 27 Nm (20 ft. lbs.).
5. Tighten the brackets to the frame to 61 Nm (45 ft. lbs.).
