Description

DESCRIPTION

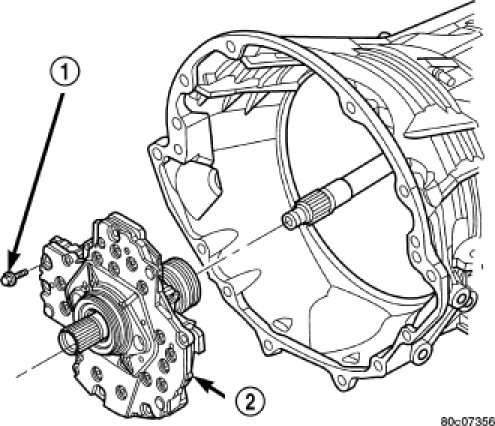

The oil pump (2) is located at the front of the transmission inside the bell housing and behind the transmission front cover.

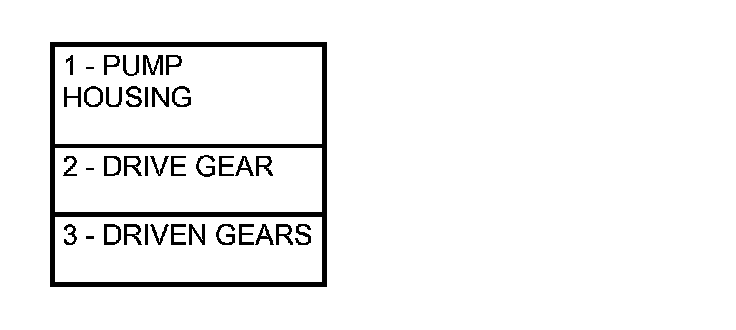

Oil Pump Gears







The oil pump consists of two independent pumps.






The oil pump also contains a number of valves. The converter clutch switch (3) and control valves (2), pressure regulator valve (5), and converter pressure limit valve (6) are all located in the oil pump valve body.





Oil Pump Reaction Shaft

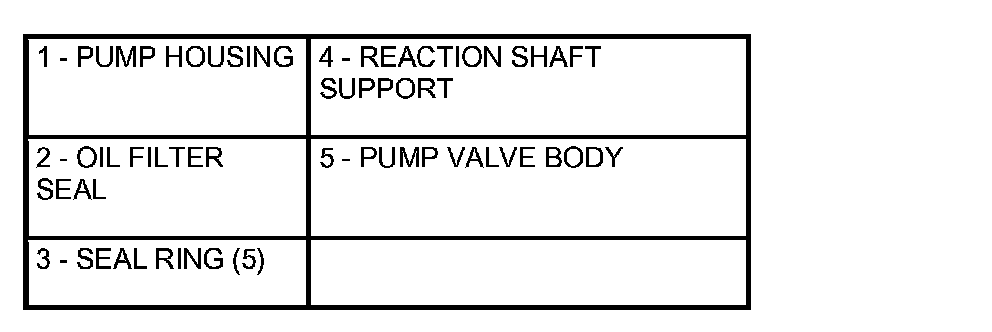

A filter seal (2), and a bolt on reaction shaft (4) complete the oil pump assembly.
