Disassembly

DISASSEMBLY




1. Remove the waved snap-ring, reaction plate, clutch plates, and clutch discs.

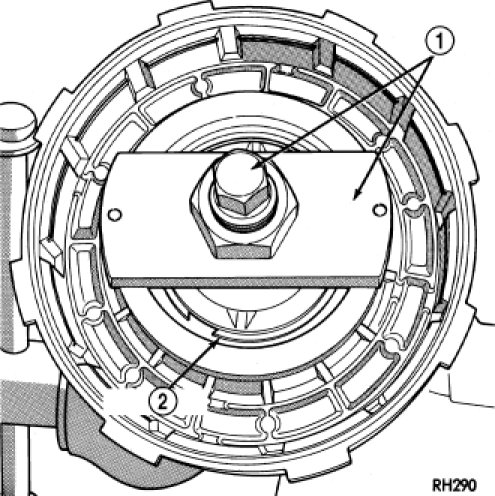

2. Compress clutch piston retainer and piston springs with Spring Compressor Tool C-3863-A (1).
3. Remove retainer snap-ring and remove compressor tool.

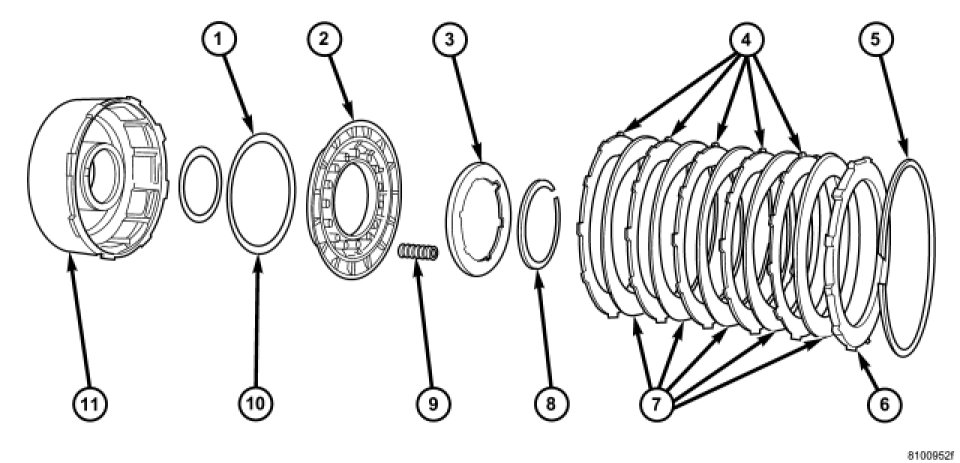

48RE Front Clutch Components






4. Remove clutch piston springs (9). Note position and number of piston springs for assembly reference.
5. Remove clutch piston (2) from retainer (11) with a twisting motion.
6. Remove and discard clutch piston inner (1) and outer seals (10).
