Removal

REMOVAL




1. Disconnect and isolate the battery negative cable.

2. Remove center instrument panel bezel.

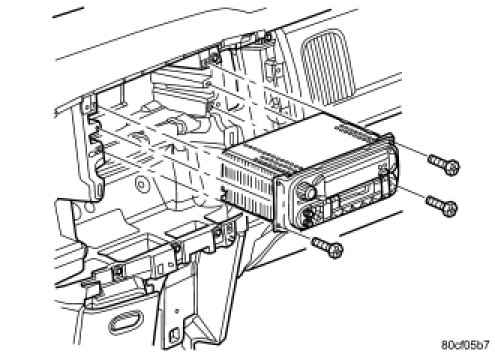

3. Remove radio mounting fasteners.






CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

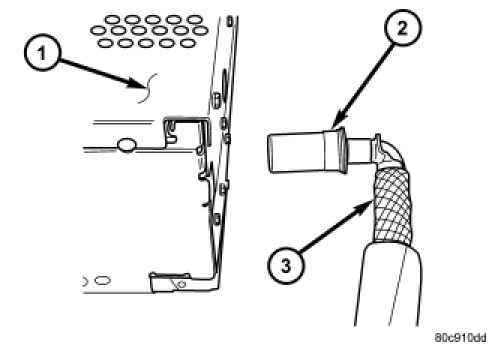

4. Disconnect the antenna cable by pulling the locking antenna connector (2) away from the radio.

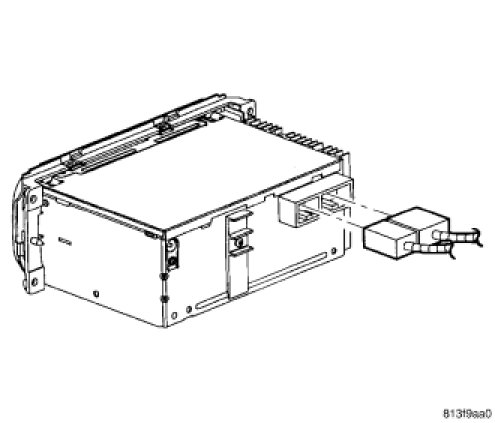

5. Disconnect electrical harness connector.
