Outside Rearview Mirror Glass - Installation

INSTALLATION

STANDARD MIRROR






NOTE: Connect each heated mirror glass electrical connector to its respective mirror terminal as noted during the Removal procedure, if equipped.

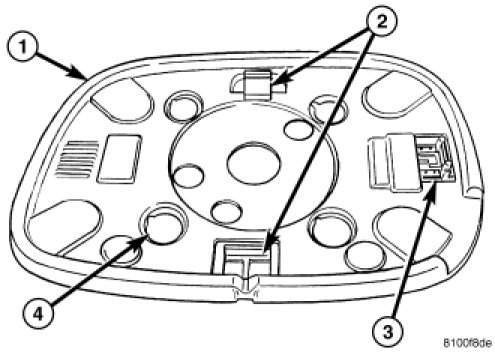

1. If equipped, connect the wire harness connectors to the heated glass mirror terminals (3).

2. Position the mirror glass (1) so that the four alignment holes (4) are over the four feet of the mirror motor.


NOTE: Pressure must be applied equally over the center portion of the mirror glass to engage the retainer clip fully.

3. Engage the upper retainer clip (2) to the top of the mirror motor and slide the mirror glass downward until the lower retainer clip is fully engaged.

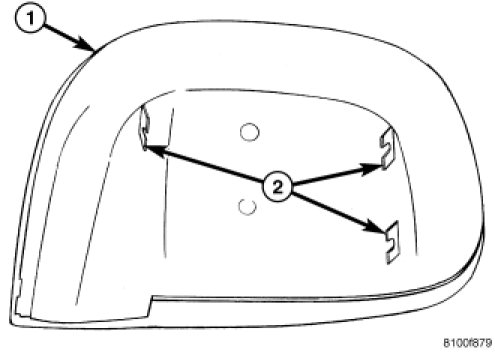

4. Position the mirror housing (1) onto the mirror and fully engage the three retainer clips (2).


TOW PACKAGE MIRROR






NOTE: Connect each heated mirror glass electrical connector to its respective mirror terminal as noted during the Removal procedure, if equipped.

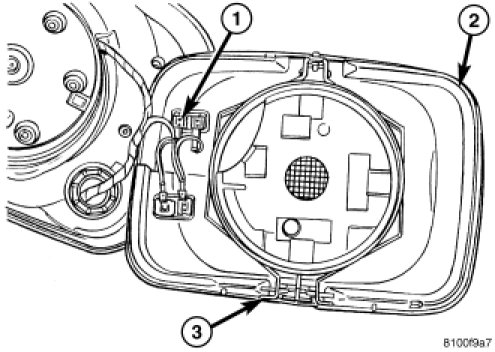

5. If equipped, connect the wire harness connectors to the heated glass mirror terminals (1).


NOTE: Pressure must be applied equally over the center portion of the mirror glass to engage the retainer clip fully.

6. Install the mirror glass (2) onto the mirror motor and fully engage the retainer clip (3).
