Installation

INSTALLATION

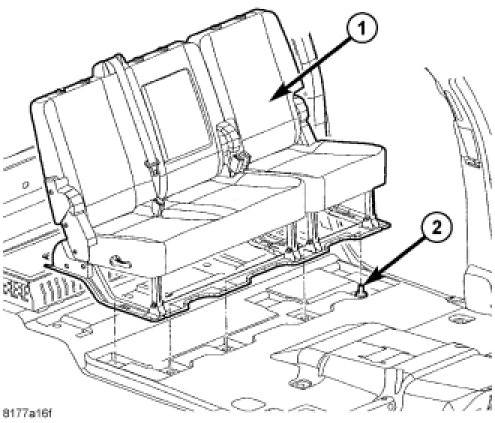

1. Install the seat assembly (1) into the vehicle and position over the front stud (2).

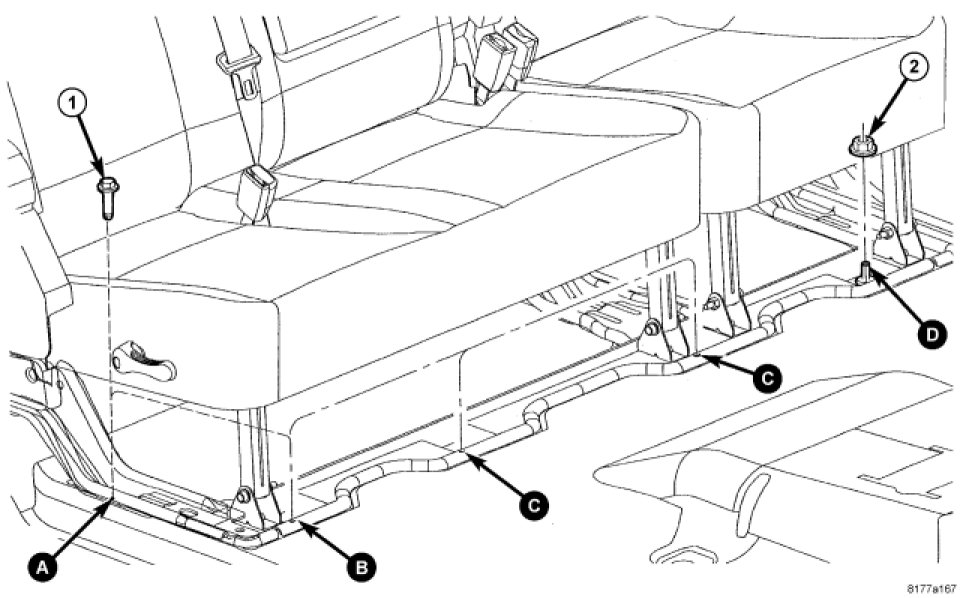

2. Install the nut (2) and bolts (1).

3. Tighten the fasteners to 47.5 Nm (35 ft. lbs.) using the sequence shown.

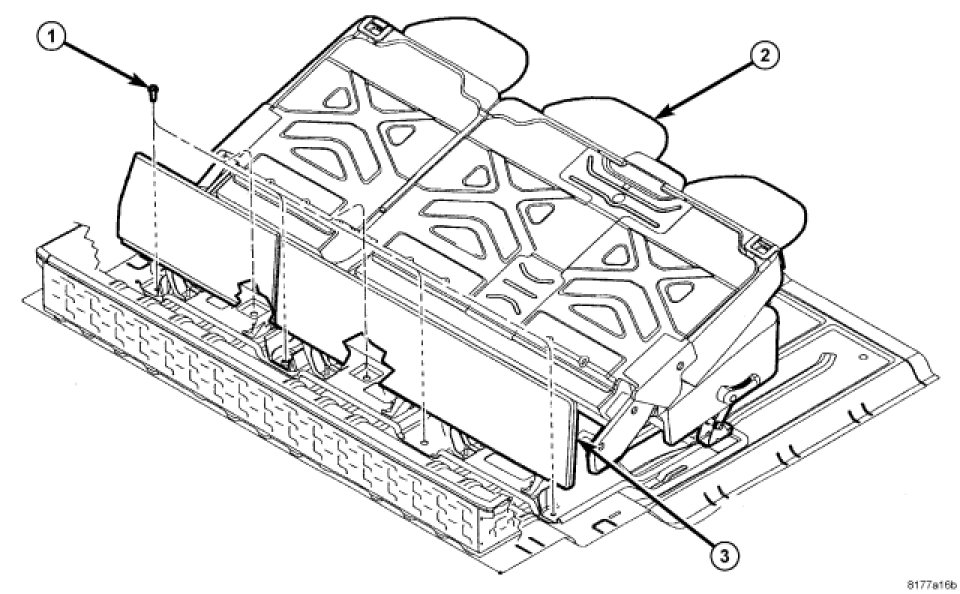

4. Install the rear bolts and tighten to 47.5 Nm (35 ft. lbs.).
