C145

Component ID: 42
Component : C145

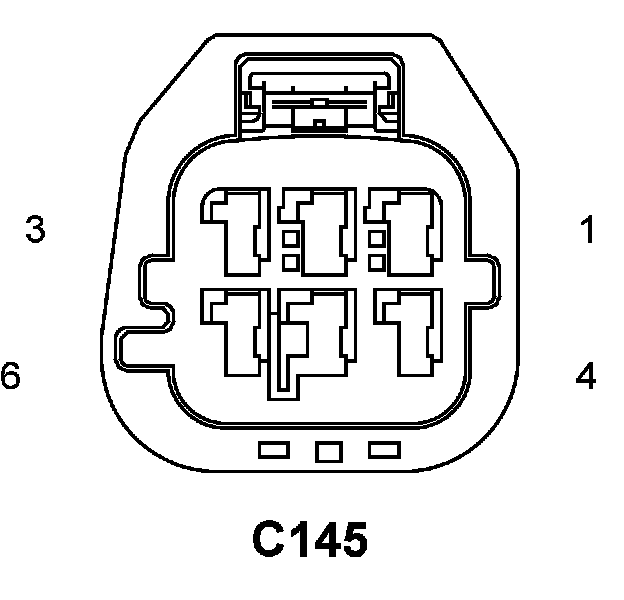

Connector:
Name : C145
Color :
# of pins : 6
Gender : FEMALE




Pin Description Circuit
1 FUSED B(+) A426 14VT
2 FUSED B(+) A422 14RD
3 FUSED B(+) A423 14PK
4 - -
5 - -
6 - -

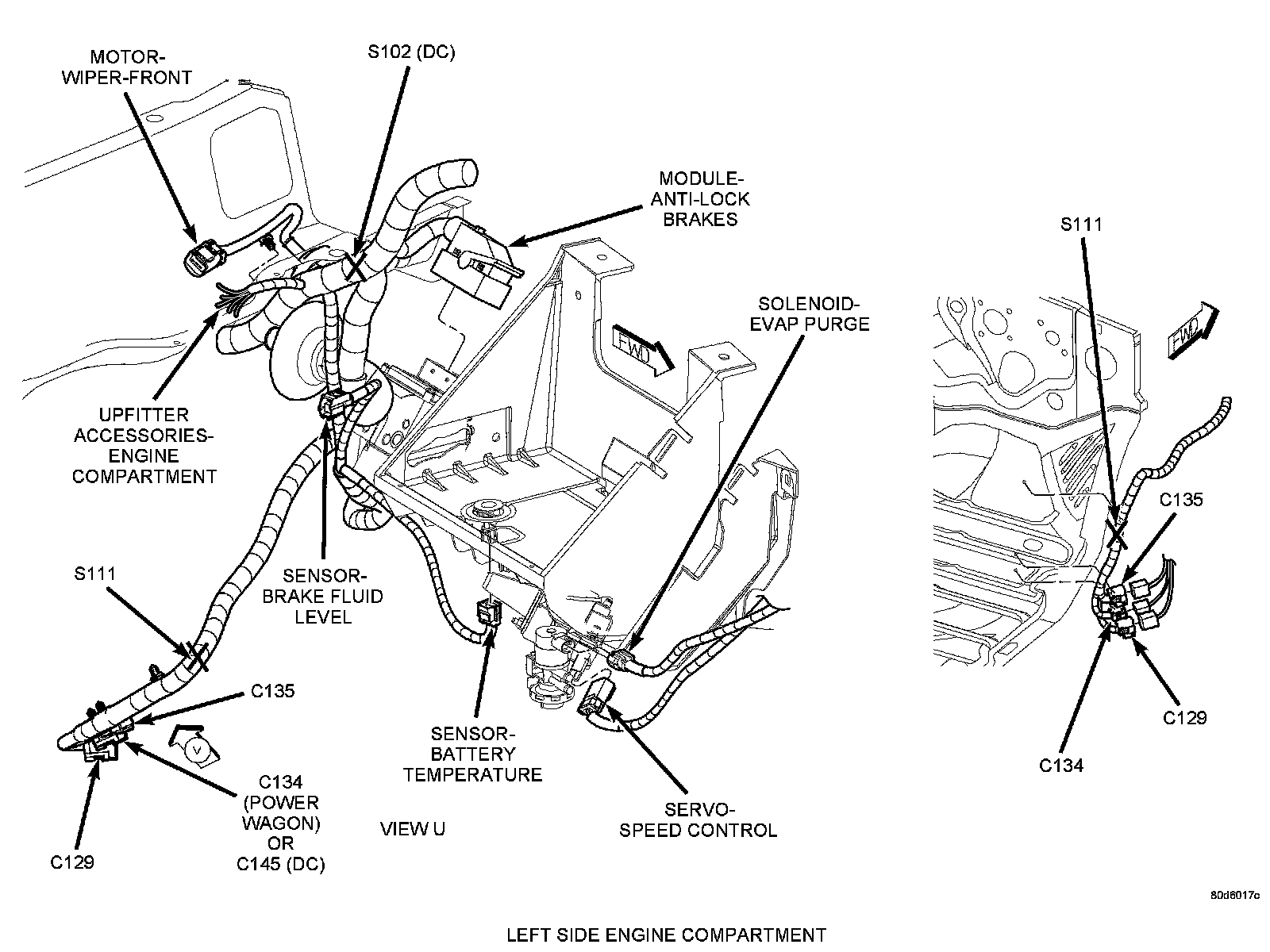

Component Location - 32




Component Location - 69




Connector:
Name : C145
Color :
# of pins : 6
Gender : MALE




Pin Description Circuit
1 FUSED B(+) A426 14VT
2 FUSED B(+) A422 14RD
3 FUSED B(+) A423 14PK
4 - -
5 - -
6 - -

Component Location - 32




Component Location - 69
