A/T - 1-2 Shift Hunting At Light Throttle
NUMBER: 21-009-07GROUP: Transmission
DATE: May 24, 2007
SUBJECT:
48RE Transmission - 1-2 Shift Hunt At Light Throttle
OVERVIEW:
This bulletin involves the replacement of the governor pressure solenoid valve in the transmission valve body.
MODELS:
2004 - 2007 (DR/DH/D1) Ram Truck (2500/3500)
SYMPTOM/CONDITION:
The customer may experience a 1-2 shift transmission hunt during light throttle application.
This condition may be due to a governor pressure solenoid valve.
DIAGNOSIS:
If the customer experiences the above condition perform the Repair Procedure.

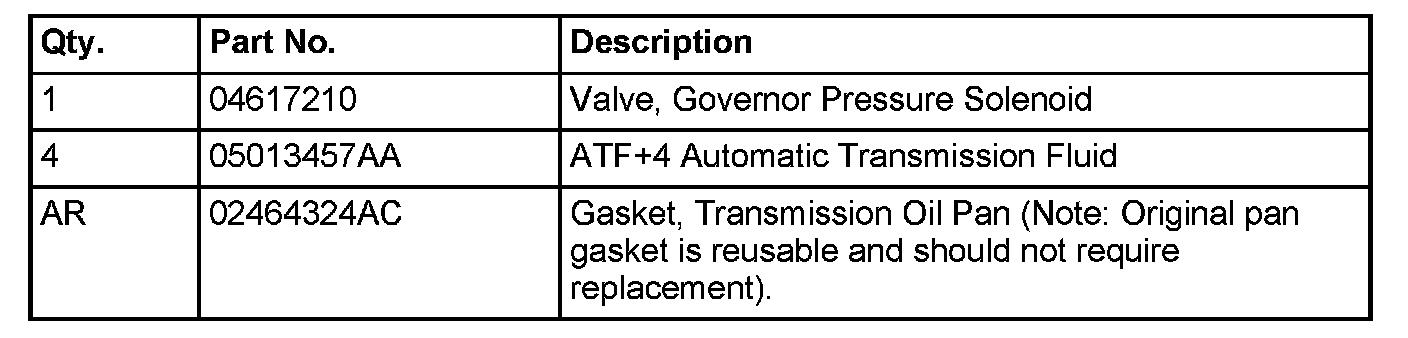

PARTS REQUIRED:
REPAIR PROCEDURE:
1. Raise the vehicle on a suitable lift. Turn the ignition switch to the "OFF position. Remove the ignition key from the ignition switch.
2. Remove the transmission fluid (oil) pan and pan gasket. Clean and save the pan gasket for later use during reassembly.

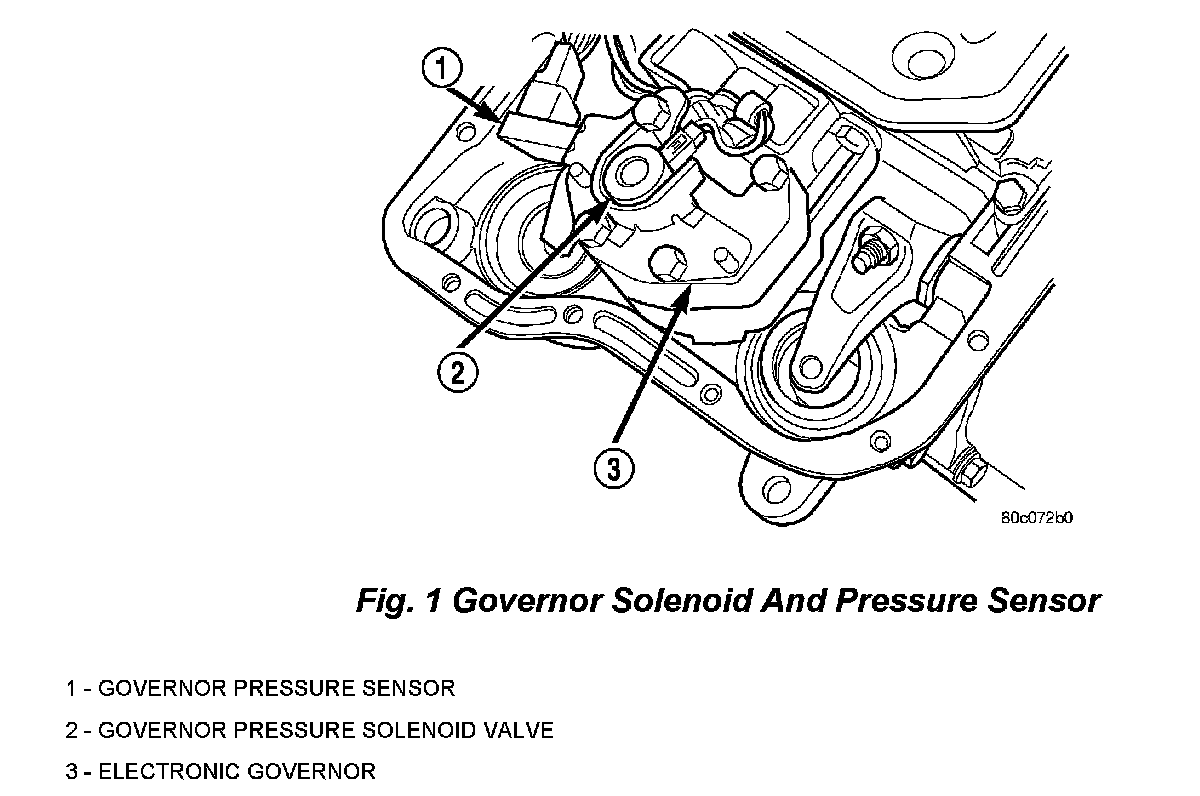

3. Disengage the wire connector to the governor pressure solenoid valve (Fig. 1).
4. Remove the screws used to secure the governor pressure solenoid valve retainer to the transmission valve body.
5. Remove the old governor pressure solenoid valve from the transmission valve body.
6. Clean the transmission housing and oil pan gasket surfaces.
7. Lubricate the 0-rings on the new governor pressure solenoid valve.
8. Align the governor pressure solenoid valve to the bore in the valve body.
9. Install the governor pressure solenoid valve to the valve body.
10. Install the governor pressure solenoid valve retainer and attaching screws to the valve body.
11. Connect the wire connector to the governor pressure solenoid valve.
12. Install the transmission fluid (oil) pan and pan gasket (saved earlier) to the transmission. Tighten attaching bolts to 13.6 Nm (125 in. lbs.).
13. Lower vehicle.
14. Add automatic transmission fluid to the transmission.
15. Verify correct transmission fluid level.
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:

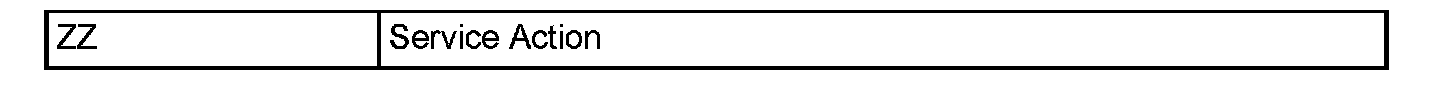

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
