Rear Door Window Glass: Service and Repair
DOOR GLASSREMOVAL
NOTE: Quad Cab model shown, Mega Cab models are similar.
1. Remove the inner belt molding, Refer to Weatherstrip.
2. Remove the waterdam, Refer to Front Door Panel.
3. Install the manual window crank or reconnect the electric window switch to the door wire harness (depending on application) and raise the door glass to the position shown.

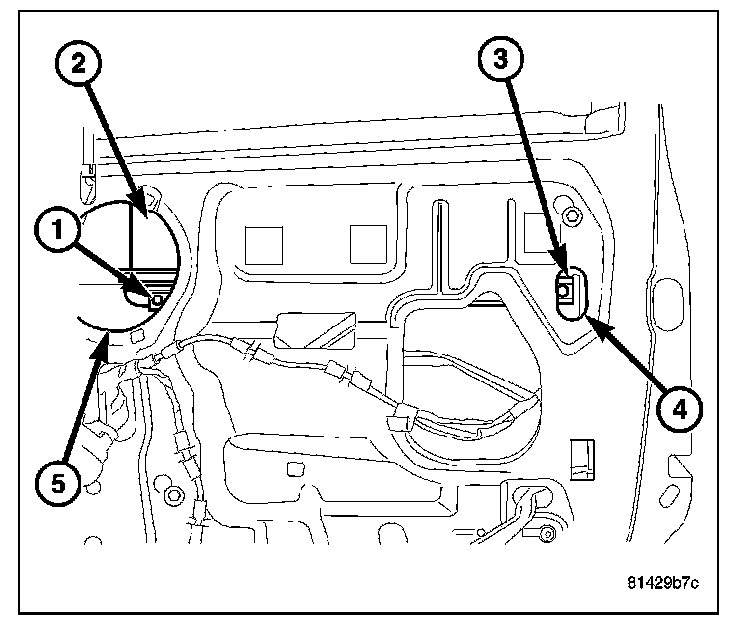

4. Remove the two nuts (1) that secure the door glass (2) to the window regulator (3) through the speaker opening (5) and the sight window (4) and disengage the door glass from the regulator.

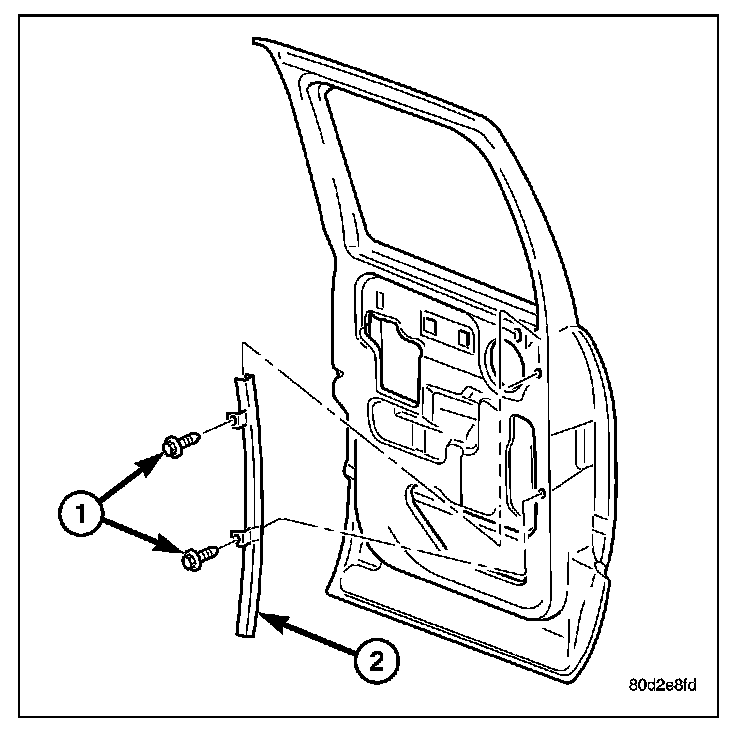

5. Remove the two bolts (1) that secure the front glass run channel (2) to the door and remove the run channel through the door panel opening.
6. Disengage the door glass from the window regulator and lower the glass into the door.
7. Carefully rotate the door glass within the door and remove the glass from the window opening.
INSTALLATION
1. Carefully lower the door glass into the door through the window opening.
2. Rotate the door glass into position and engage it to the window regulator.
3. Position the front glass run channel (1) into the door through the door panel opening.
4. Install the two bolts (1) that secure the front glass run channel to the door. Tighten the bolts to 10 N.m (89 in.lbs.).
NOTE: Quad Cab model shown, Mega Cab models are similar.
5. Install the two nuts (1) that secure the door glass (2) to the window regulator (3) through the sight window (4) and the speaker opening (5). Tighten the nuts to 10 N.m (89 in.lbs.).
6. Lower the door glass into the door and remove the manual window crank or disconnect the electric window switch from the door wire harness (depending on application).
7. Install the waterdam.
8. Install the inner belt molding.
