Removal

REMOVAL
1. Disconnect and isolate the battery negative cable.

2. Remove the rear seats.

3. Remove the rear cab back panel.

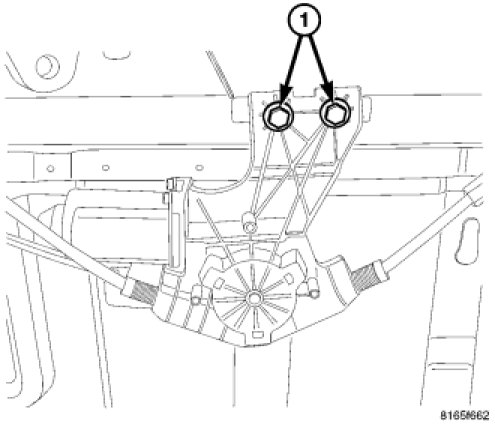

4. Remove the two mounting bolts (1).

5. Disconnect the electrical connector to the power motor.

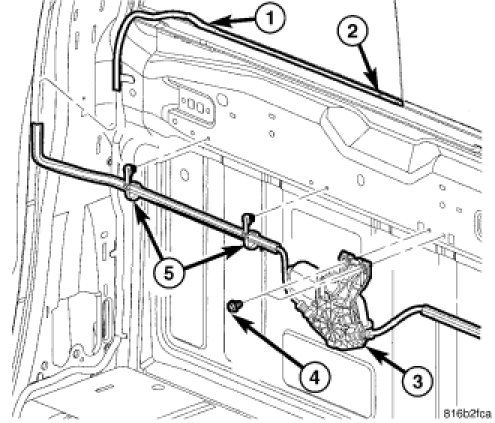

6. Separate the cable housings from the glass track (1).

7. Disconnect the cable ends from the vent glass (2).

8. Separate the support clips (5) and remove the regulator assembly (3).
