Removal

REMOVAL




1. Before proceeding with the following repair procedure, review all warnings and cautions.


NOTE: Do not reuse the seat fasteners, always replace with new ones.

2. If equipped, remove the floor console as necessary.

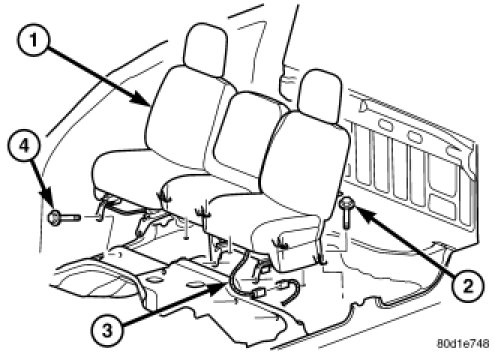

3. Remove and discard the front bolts (4).

4. Position the seats (1) forward, remove the rear bolts (2) and discard.

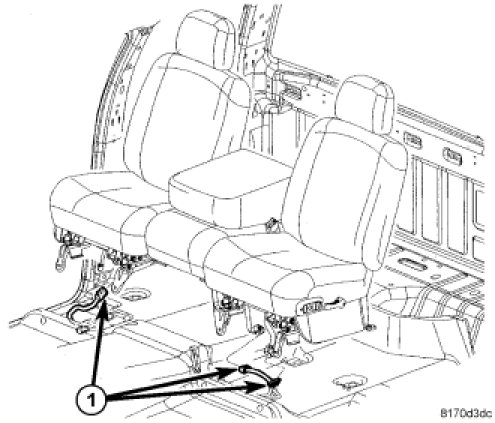

5. Disconnect the electrical connectors (1).





6. Fold the seat backs forward and roll the seat assembly back in the vehicle.

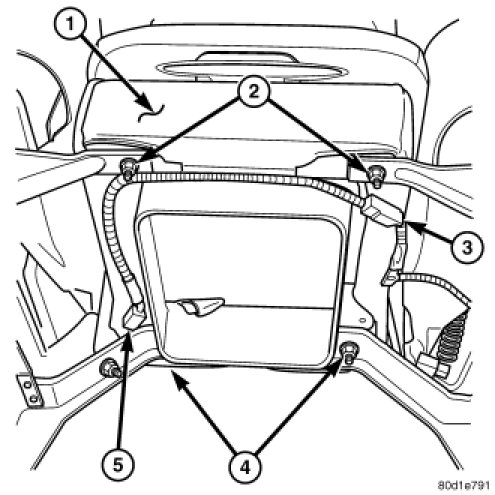

7. Remove and discard the nuts (2 and 4) on either the driver or passenger side.

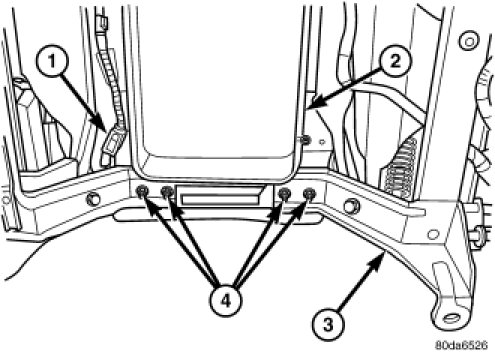

8. Separate the seat assembly by removing and discarding the nuts (4) on either the drivers or passengers seat.

9. Remove each section of the seat assembly from the vehicle.
