Installation

INSTALLATION





NOTE: Do not reuse the seat fasteners, always replace with new ones.

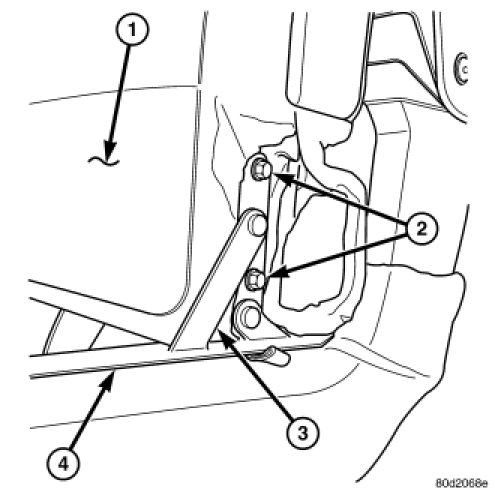

1. Position the center seat cushion (4) on the hinges (3) and install new bolts (2).

2. Tighten the bolts (2) to 20 Nm (15 ft. lbs.).

3. Position the cushion cover back over the hinges.
