Hydroboost

HYDROBOOST





NOTE: If master cylinder is replaced bleed cylinder before installation.

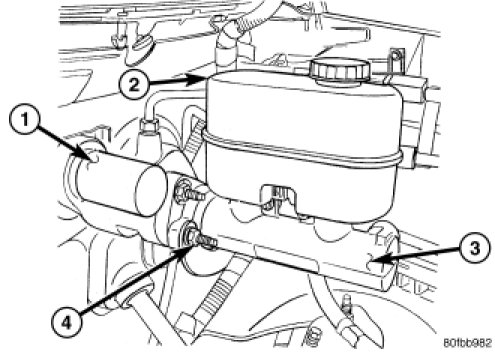

1. Install the master cylinder (3) on the booster mounting studs.
2. Install new mounting nuts (4) and tighten to 25 Nm (221 in. lbs.)
3. Install the brake lines and tighten to 19 Nm (170 in. lbs.)
4. Reconnect the electrical connector for the low fluid level switch.
5. Fill and bleed the base brake system.
