Removal

REMOVAL




1. Disconnect and isolate the battery negative cable.

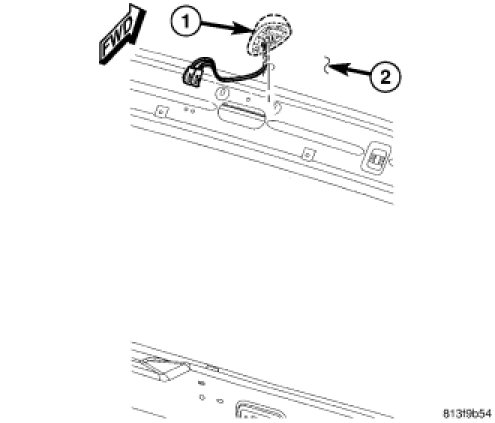

2. Lower the rear portion of the headliner as necessary to access underside of antenna (1).

3. Disconnect the antenna cables.

4. Remove retaining fastener.

5. From inside the vehicle, and using a flat bladed tool, depress one of the retaining tabs on the antenna. Push up the one side of the antenna connector through the roof panel. Depress the other side of the connector and remove the antenna.
