Installation

INSTALLATION




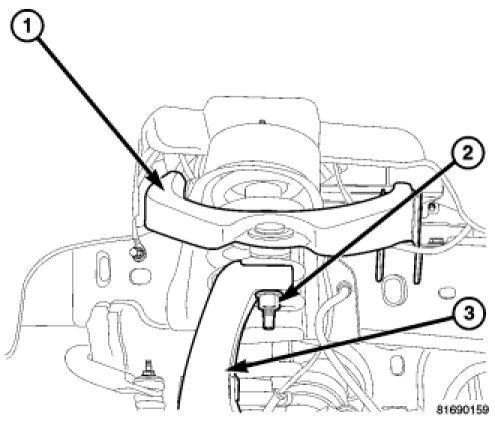

1. Position the control arm (1) into the frame brackets. Install bolt (3) and and flag nut (2), tighten to 176 Nm (130 ft. lbs.)(LD) or 170 Nm (125 ft. lbs.)(HD 4X2 only).




2. Insert the ball joint in steering knuckle (3) and tighten the upper ball joint nut (2) to 54 Nm (40 ft. lbs.)(on 1500 series only an additional 90� turn is required) or 68 Nm (50 ft. lbs.) (HD).
3. Install the rotor to the hub.
4. Install the disc brake caliper and adapter to the knuckle.
5. Install the wheel speed sensor wire to the upper control arm (LD).
6. Install the wheel and tire assembly.
7. Remove the support and lower vehicle.
8. Perform a wheel alignment.
