INSTALLATION

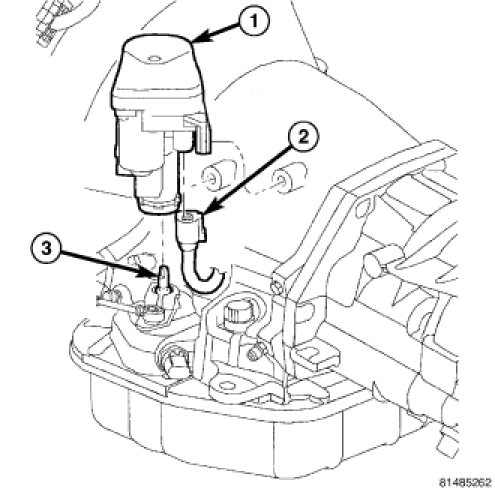

1. Position the transmission throttle valve actuator (TTVA) (1) over the throttle valve shaft (3).
2. Align the D-shaped opening in the bottom of the TTVA to the throttle valve shaft and install the TTVA onto the shaft.
3. Install the wiring connector (2) to the TTVA (1).

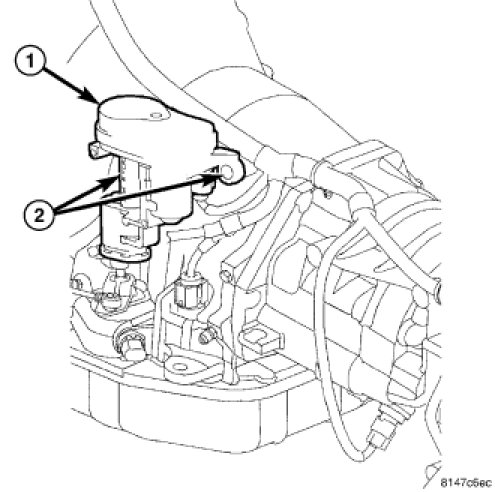

4. Rotate the TTVA (1) to the transmission case and install the bolts (2) to hold the TTVA to the transmission.
5. Tighten the bolts to 8.5 Nm (75 in.lbs.).
6. Initialize the TTVA.
