Removal

6.7L DIESEL ENGINE







1. Disconnect and isolate the battery negative cable.

2. Disconnect the coolant overflow hose from the nipple on the radiator filler neck. It is not necessary to open or drain the engine cooling system.

3. Disengage the reservoir washer hose from the integral routing clips on the top of the radiator fan shroud.

4. Disconnect the reservoir washer hose from the barbed nipple of the inline fitting at the engine compartment washer hose in the right headlamp and dash wire harness and allow the washer fluid to drain from the reservoir (2) into a clean container for reuse.

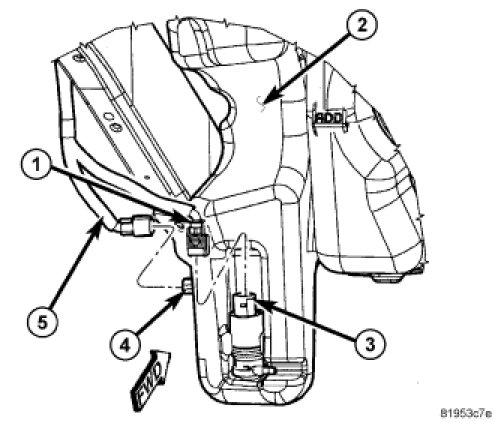

5. Disconnect the left headlamp and dash wire harness connector (5) from the washer fluid level switch connector receptacle (4).

6. Disconnect the left headlamp and dash wire harness connector (1) from the washer pump/motor unit connector receptacle (3).







7. Remove the two screws (2) that secure the washer reservoir (1) to the left vertical member and left lower horizontal member of the radiator support.

8. Lift the washer reservoir far enough to disengage the locator post (3) on the bottom of the coolant reserve bottle from the locator hole in the bracket (4) at the base of the left vertical member of the radiator support.

9. Remove the washer reservoir from the left side of the engine compartment.
