Instrument Panel Bin - Installation

INSTALLATION





NOTE: A storage bin replaces the cup holder in the instrument panel when the vehicle is equipped with a floor console.

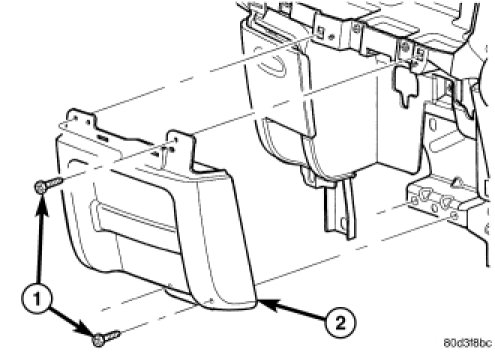

1. Position the storage bin (2) into the instrument panel.

2. Install the four screws (1) that secure the storage bin to the instrument panel. Tighten the screws to 2.2 Nm (20 in. lbs.).

3. Install the floor console.

4. Install the instrument panel center bezel.
