Rear

REAR




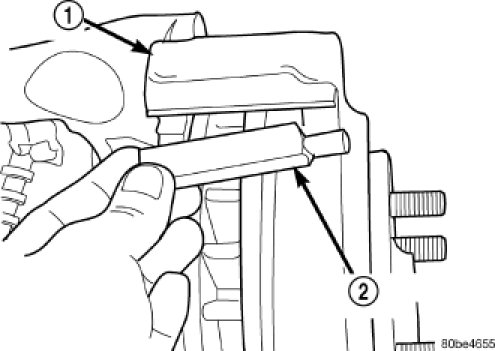

1. Clean caliper mounting adapter (1) and anti-rattle springs (2).
2. Lubricate anti-rattle springs with Mopar brake grease.

NOTE: Anti-rattle springs are not interchangeable.

3. Install new top anti-rattle spring (2).




4. Install new bottom anti-rattle spring (1).




5. Install inboard brake shoe (1) in adapter (2).




6. Install outboard brake shoe (1) in adapter (2).

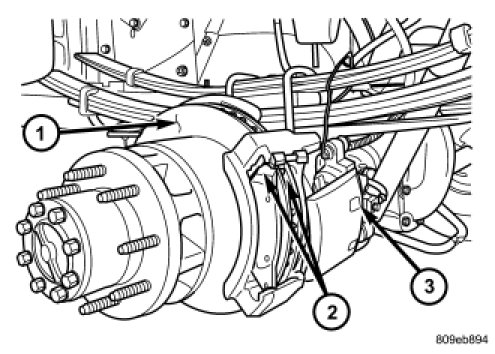

7. Tilt the bottom of the caliper (3) over rotor (1) and under adapter. Then push the top of the caliper down onto the adapter.

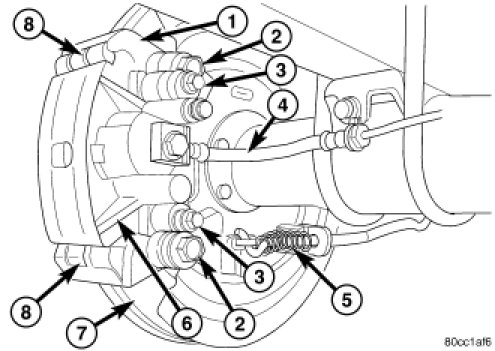

8. Install caliper (6).
9. Install wheel and tire assemblies and lower vehicle.
10. Apply brakes several times to seat caliper pistons and brake shoes and obtain firm pedal.
11. Top off master cylinder fluid level.
