Headlamp Switch: Testing and Inspection

HEADLAMP SWITCH

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.







1. Remove the cluster bezel from the instrument panel.

2. Disconnect the wire harness connector from the back of the headlamp switch.

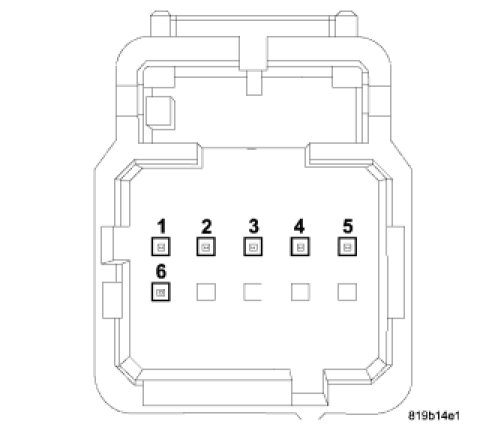

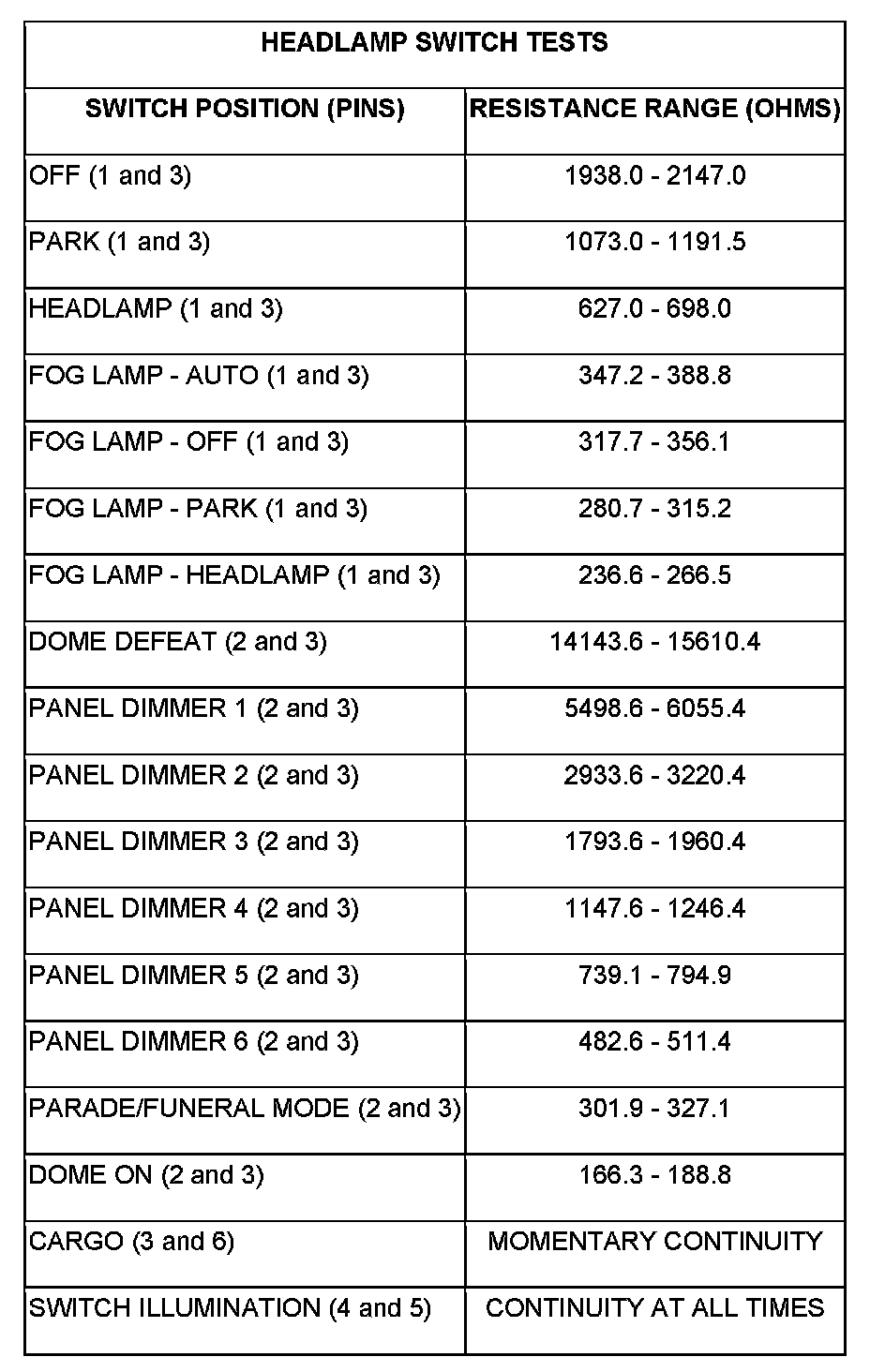

3. Using an ohmmeter, test the resistance or continuity between the terminals of the switch as shown in the Headlamp Switch Tests table.







4. If the switch fails any of the tests, replace the ineffective headlamp switch as required.
