Removal

REMOVAL

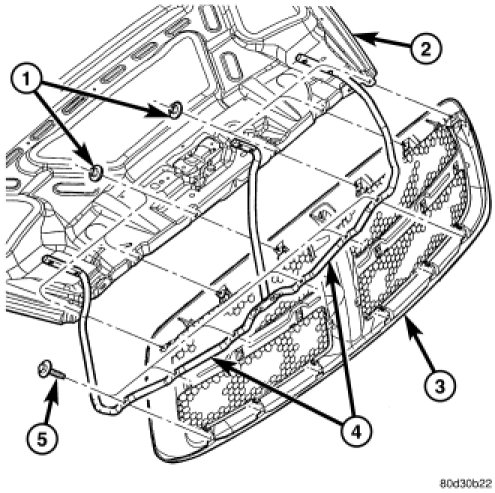

1. Open the hood (2) and remove the six screws (5) that secure the grille (3) to the grille frame (4).

2. Remove the six nuts (1) that secure the grille to the hood and remove the grille.

3. If required, remove the grille frame from the hood.
