Installation

INSTALLATION

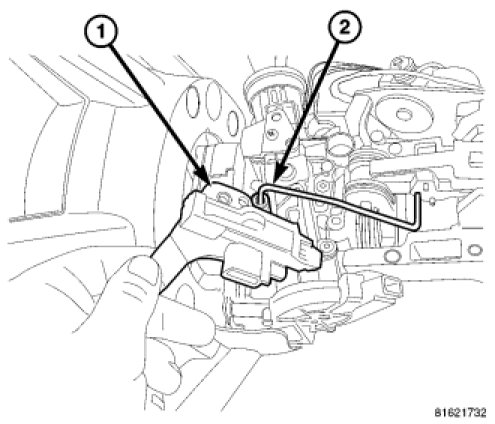

1. Route the rod (2) into the tilt lever release knob bracket (1).




2. Install the tilt lever release knob bracket (3) to the column and install the two new mounting screws (1). Tighten the two screws to 4.5 Nm (40 in. lbs.).




3. Install the lower shroud.
4. Install the steering column opening cover.

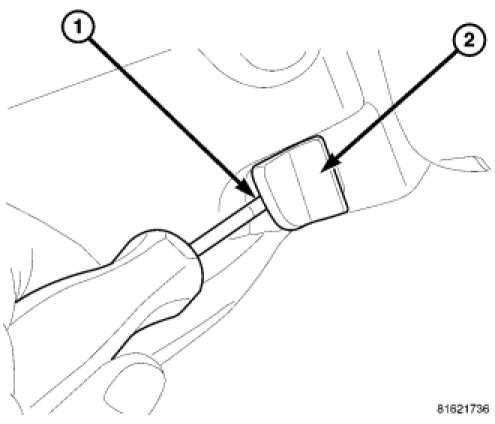

5. Install the tilt lever knob (2) and screw (1). Tighten the screw to 4.5 Nm (40 in. lbs.).
