Installation

INSTALLATION

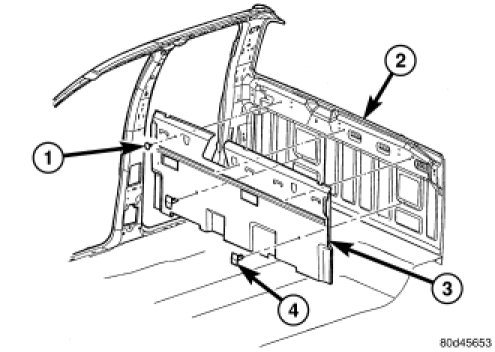

1. On Quad Cab models, position the rear cab trim panel (3) onto the rear cab back panel (2) and install the two push-pin fasteners (1 and 4).

2. On Quad Cab models, install the lower C-pillar trim panels.

3. On Quad Cab models, install the center seat belt trim beze.

4. On Quad Cab models, install the child seat tether straps.

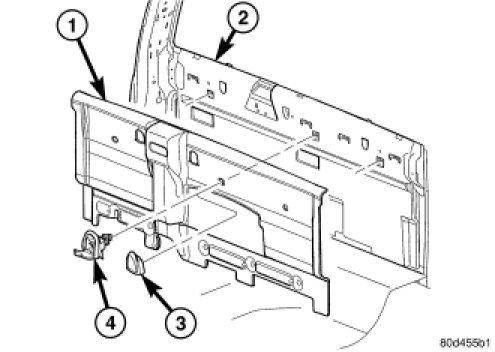

5. On Regular cab models, position the rear cab trim panel (1) onto the rear cab back panel (2) and install the utility hook (3) or the storage bin latch (4) (depending on application).

6. On Regular cab models, install the lower B-pillar trim panels.

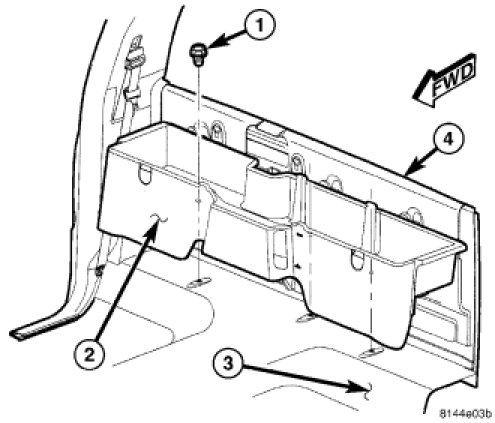

7. If equipped, position the rear storage compartment (2) onto the rear cab trim panel (4) and install the three bolts (1). Tighten the bolts to 6 Nm (55 in. lbs.).
