Sensor-Water In Fuel

Component ID: 433
Component : SENSOR-WATER IN FUEL

Connector:
Name : SENSOR-WATER IN FUEL
Color : BLACK
# of pins : 2
Qualifier : (5.9L)




A WATER IN FUEL SENSOR GROUND K923 18BR/WT
B WATER IN FUEL SENSOR SIGNAL G123 18VT/LG

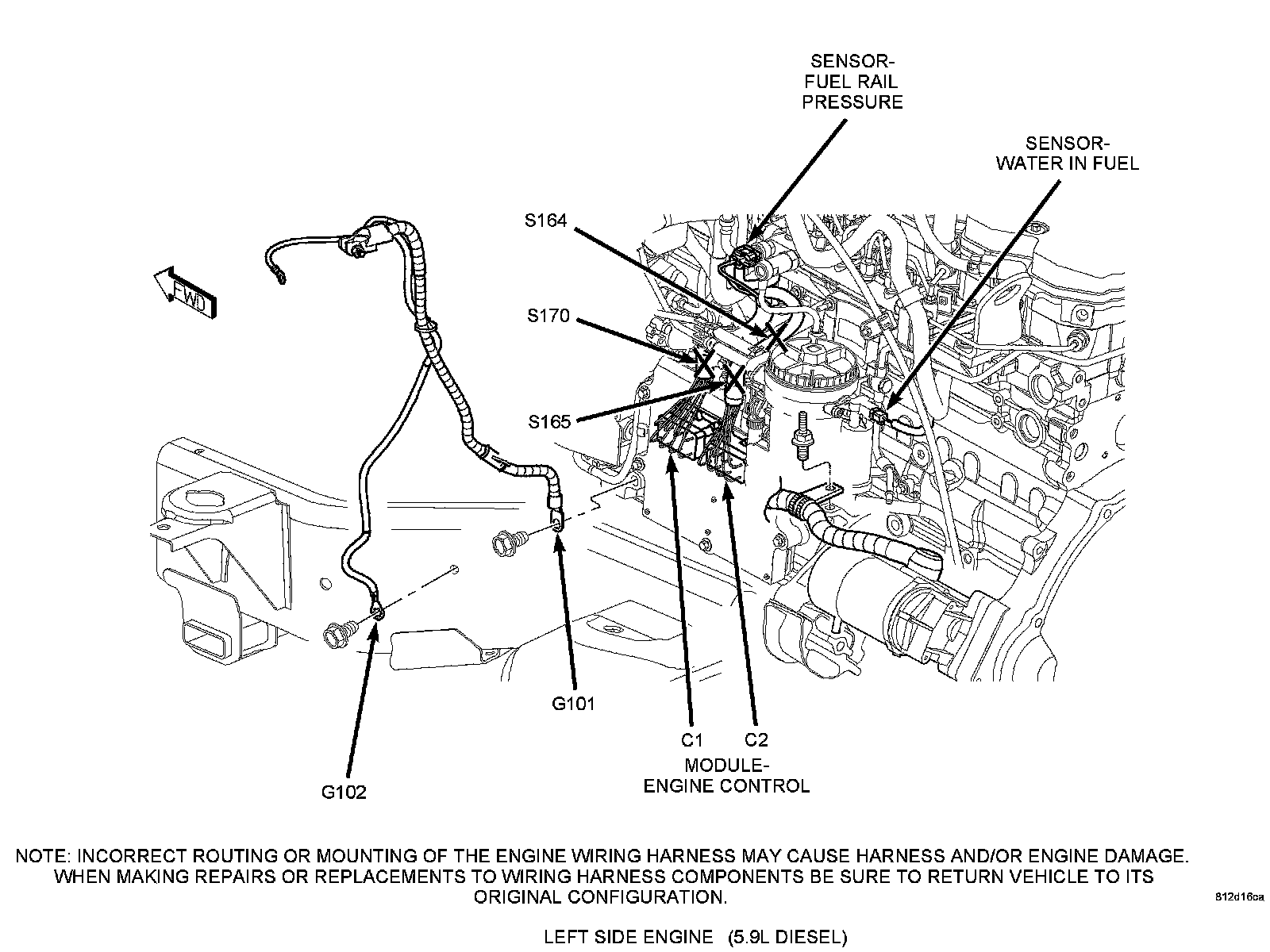

Component Location - 18




Component Location - 14




Connector:
Name : SENSOR-WATER IN FUEL
Color :
# of pins : 2
Qualifier : (6.7L)




Pin Description Circuit
1 SENSOR GROUND K914 18BR/WT
2 WATER IN FUEL SENSOR SIGNAL G123 18VT/LG

Component Location - 18




Component Location - 14
