Right

RIGHT
1. Raise and support the vehicle.
2. Disconnect the exhaust system at the manifolds.
3. Disconnect the rubber exhaust mounts at the muffler.
4. Support the transmission.
5. Remove the transmission cross member.
6. Lower the exhaust system down in order to gain access to the removal of the upper bolt.





NOTE: Discard the nuts and bolts and do not reuse. New nuts and bolts should be used when replacing or servicing the control arms.

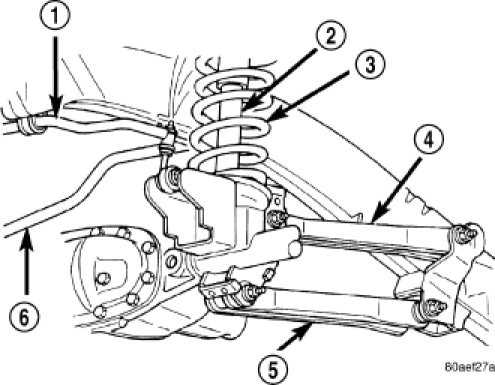

7. Remove the nut and bolt at the frame rail and remove the upper control arm (4).
8. Remove the upper control arm nut and bolt at the axle bracket.
9. Remove the control arm (4) from the vehicle.
