Assembly

ASSEMBLY





NOTE: Internal differential components are serviced with the case.

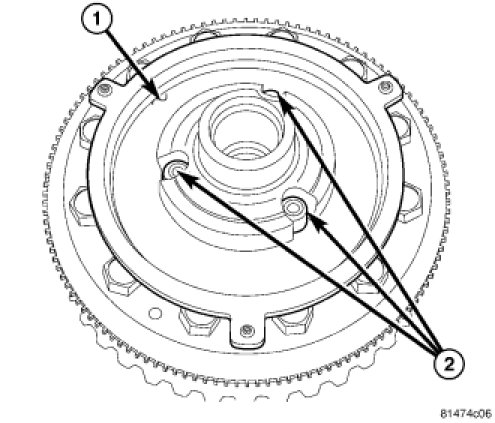

1. Position coil on differential case (1) mounting location (2).




2. Clean coil bolts then apply Mopar(R) Lock & Seal adhesive to the threads

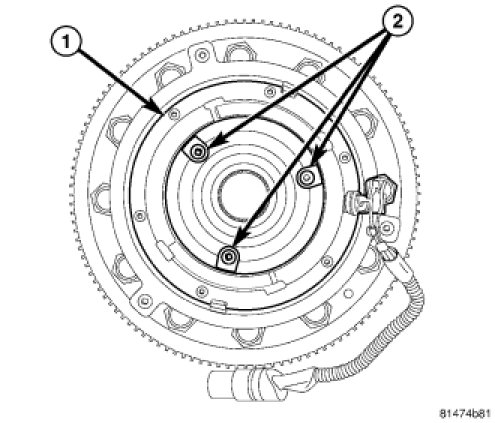

3. Install coil (1) and bolts (2).

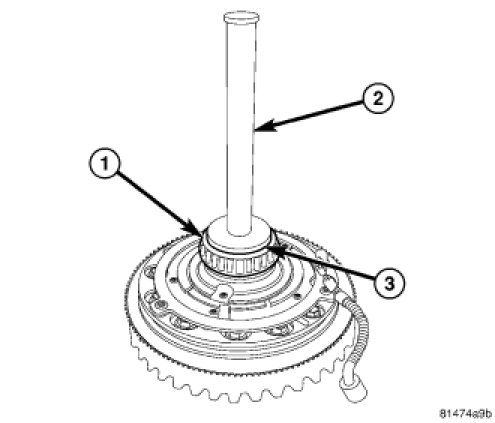

4. Install differential bearing (1) with Handle C-4171 (2) and Installer 8956 (3).
