Removal

REMOVAL

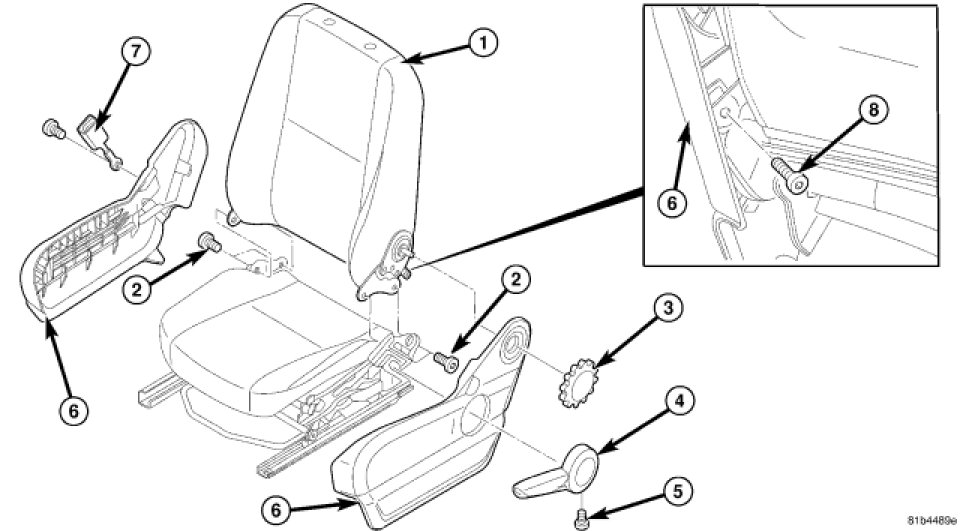

1. Remove the head rest.
2. Remove the bolt and separate the seat belt from the seat.
3. Remove the bolt and remove the belt buckle (7).
4. Remove the bolt (5) and remove the height adjuster lever (4).
5. Remove the backrest adjustment hand wheel (3).
6. Remove the bolt (8) at the left and right side panel (6) and remove the side panels.
7. Remove the bolts (2) at the left and right backrest fitting (1) and take backrest off of seat frame.
